W

atercraft

t

ools

c

hemical

e

lectrical

c

ontrol

s

uspension

e

ngine

i

ntake

V

intage

142

ORDER: 800-998-3529

TECH: 310-637-8330

Size (mm)

A

B C D

PWM38 Quad Vent 46 63 75 154.5

NOTE:

Do not remove parts that are not shown on this extended view.

Size (mm) Main Slow

Jet

Throttle Float Keihin Order

Jet

Jet

Needle Valve

Height

No.

No.

PWM38

#175 #50

48-CCJ 6.0

6.5mm PWM38/S64

016-170

PWM38 Quad Vent Standard Jetting Specifications

PWM38 Carburetor Dimensions

Float Height

6.5mm

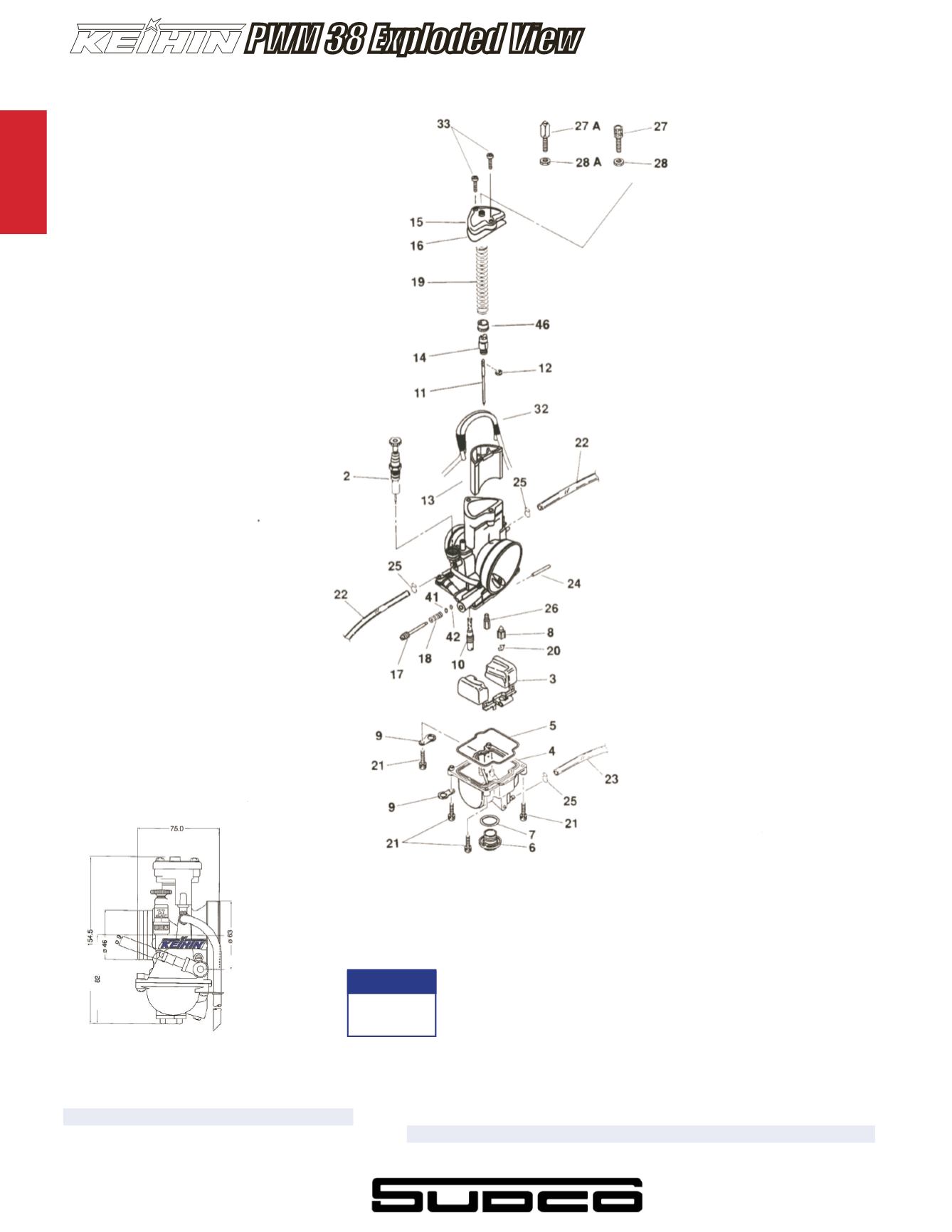

PWM 38 Exploded View

Carburetors are intended for off-road riding and

racing use only. Not legal for use in California or other

locations where similar pollution laws may apply.
