Size (mm) Main Slow Jet Throttle Float
Jet Jet
Needle Valve Height
PWK39 #190 #45
R-1369J
6.5 19mm
Size (mm)
A
B
C
D
PWK39
46
63
91
171.6
NOTE:
Do not remove parts that are not shown on this extended view.
PWK39 Snowmobile Standard Jetting Specifications
PWK39 Carburetor Dimensions
Float Height
19mm

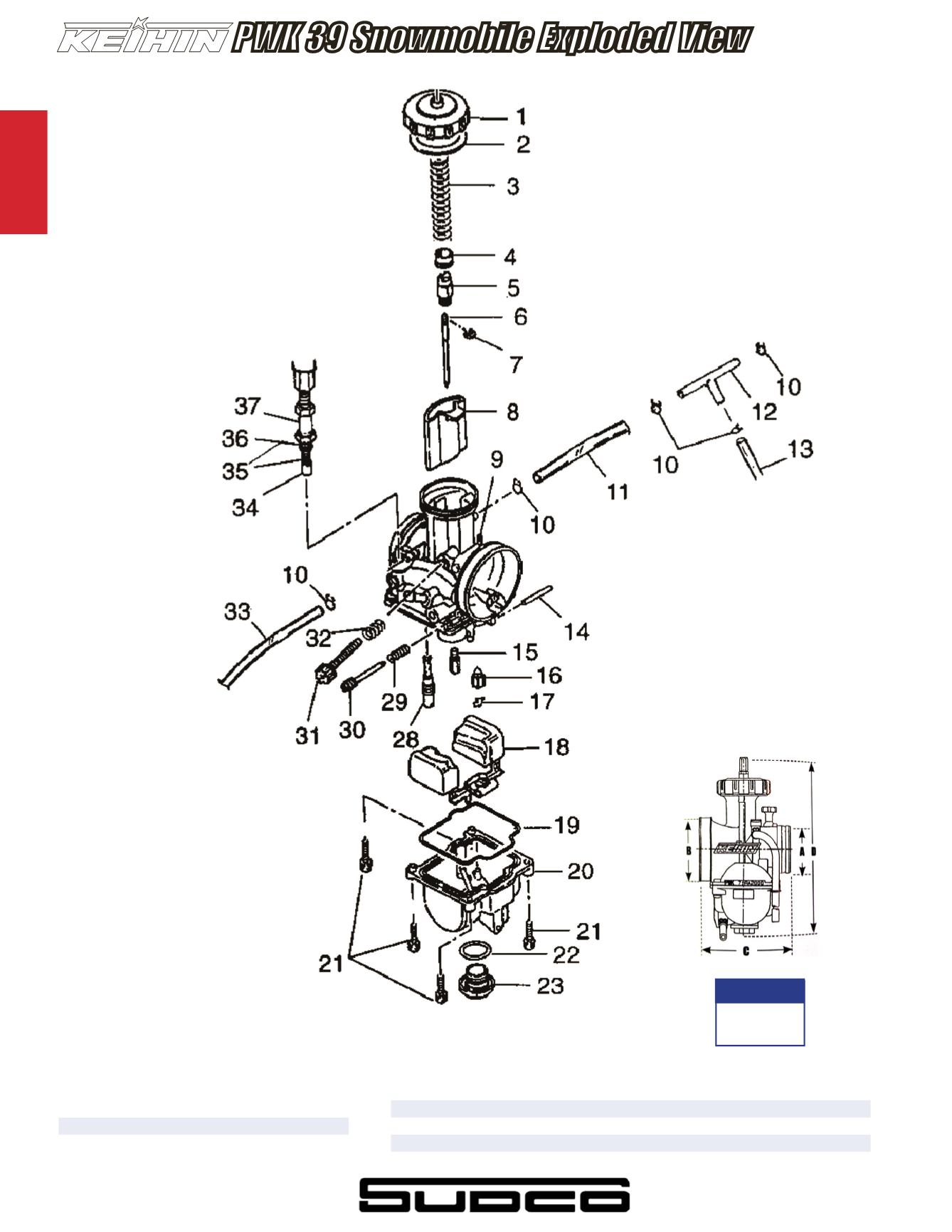

PWK 39 Snowmobile Exploded View
