Size (mm) Main Slow Jet
Throttle Float
Order
Jet Jet
Needle Valve
Height
No.
PJ34
#152 #55
48-CEG 6.0
16mm
016-039
Size (mm)
A B C
D
PJ34
41 59 91
174.0
PJ34 Carburetor Dimensions
PJ34 Standard Jetting Specifications
Float Height
16mm
NOTE:
Do not remove parts that are not shown on this extended view.
Tokyomods Drain Plug
Keeps all fuel contaminates including water away from the main jet,
helps control fuel slosh and bogging, won’t get distorted from over
tightening, and easy to reach for quicker jetting changes. Machined
from 6061 aluminum. Also fits Keihin FCR-MX, PJ, PWK, PWM, and
PE carburetors.
Application Color
Order No.
FCR-MX, PJ, PWK,
PWM, PE
Red
024-230R
Blue
024-230B
Black
024-230K
Mag
024-230M

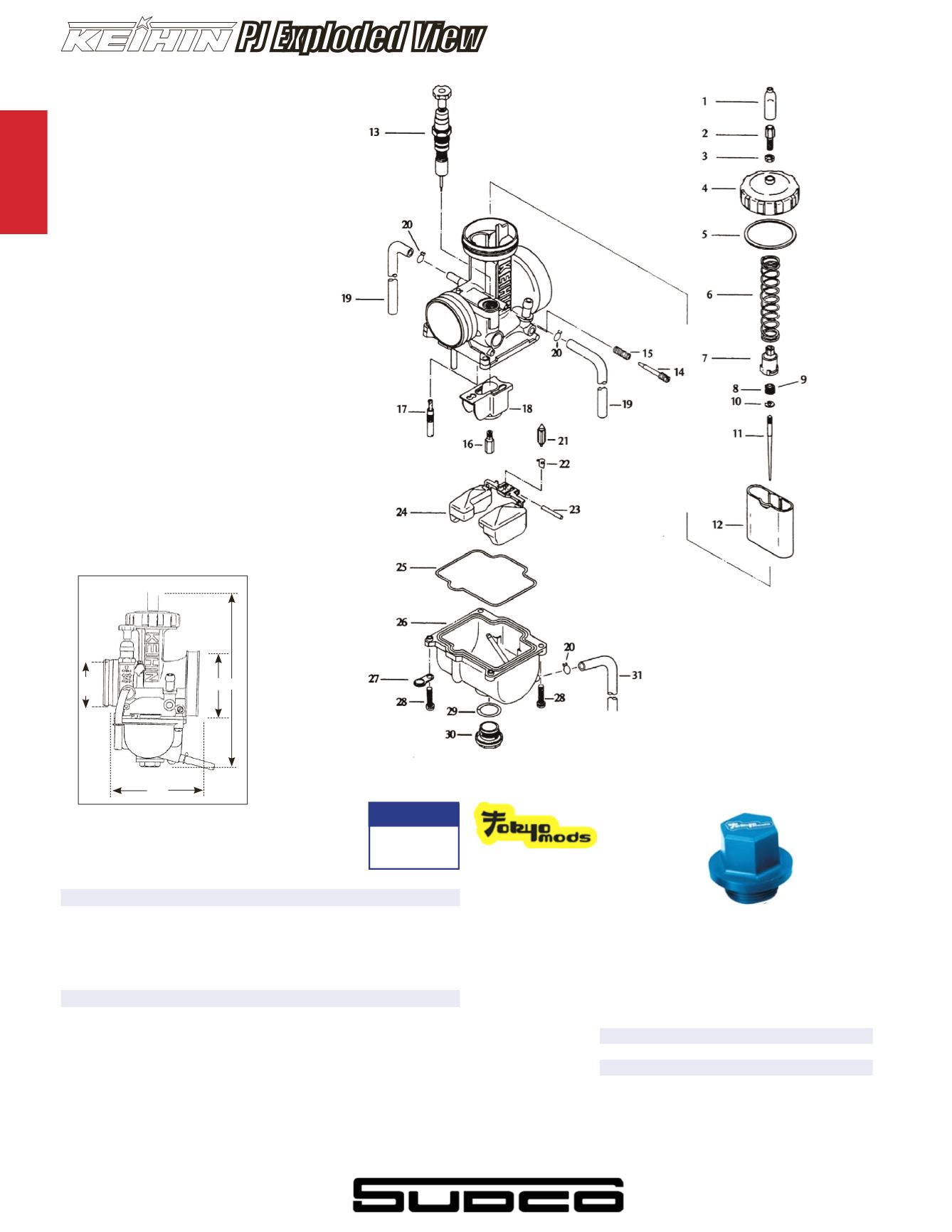

PJ Exploded View
