116

ORDER: 800-998-3529

TECH: 310-637-8330

Size

A

B

C

D

Total Width

FCR-MX37

48

63.5

191.8

–––

120.8

FCR-MX39

48

63.5

191.8

–––

120.8

FCR-MX41

48

63.5

191.8

–––

120.8

FCR-MX Carburetor Dimensions

Float Height

9mm

A

C

B

D

No. Description

Application Keihin No.

Order No.

5.

Top Cover

All

1030-897-2000

021-710

6.

Gasket, Top Cover

All

1202-895-6000

021-711

7.

Screw M4 x 12mm

All

0136-806-1100

021-700

8.

Screw M4 x 8mm

All

0136-808-1100

021-010

10.

Bracket

All

1190-840-2101

021-712

1190-B40-2100

11.

Screw 5 x 8mm

All

93500-05008-1H

021-713

12.

Throttle Shaft

All

5025-B35-2201

–––––––

14.

Coil Spring

All

1305-A83-2000

021-718

15.

Washer

All

0301-092-700

021-018

16.

Link Arm Complete

All

1061-831-2101

021-721

18.

Stop Screw

All

4110-825-1100

021-723

19.

Throttle Valve

All

N501-49C01

021-320

(Throttle Valve requires qt1 of part #20, Roller

021-027

)

20.

Roller

All

1119-803-7002

021-027

21.

Vaccum Release Plate All

1609-809-2100

021-725

22.

Seal

All

1099-817-2001

021-033

23.

Jet Needles

All

N427-OC-XXX

Pg.118

24.

Clip, Jet Needle

All

0403-802-1000

018-616

25.

Needle Set Screw

All

1421-802-2000

021-727

26.

Main Nozzle

All

1154-842-2000

021-728

27.

Main Jet

All

99101-357-XXX

Pg.150

28.

Slow Jet

All

N424-21-XXX

Pg.148

29.

Starter Jet

All

99101-393-XXX

Pg.150

30.

Slow Air Jet

All

99101-124-XXX

Pg.149

Part #30 can be replaced with Slow Air Screw.

Pg.149

30.

Slow Air Jet (some OEM)

N424-33-XXX

Pg.148

32.

Pilot Screw 40mm All

N446-07A00

021-800

32A.

Pilot Screw 50mm

All

N446-26A00

021-729

33.

Spring, Pilot Screw

All

1290-812-2001

021-041

FCR-MX Replacement Parts

Applications:

FCR-MX37, FCR-MX39, FCR-MX41.

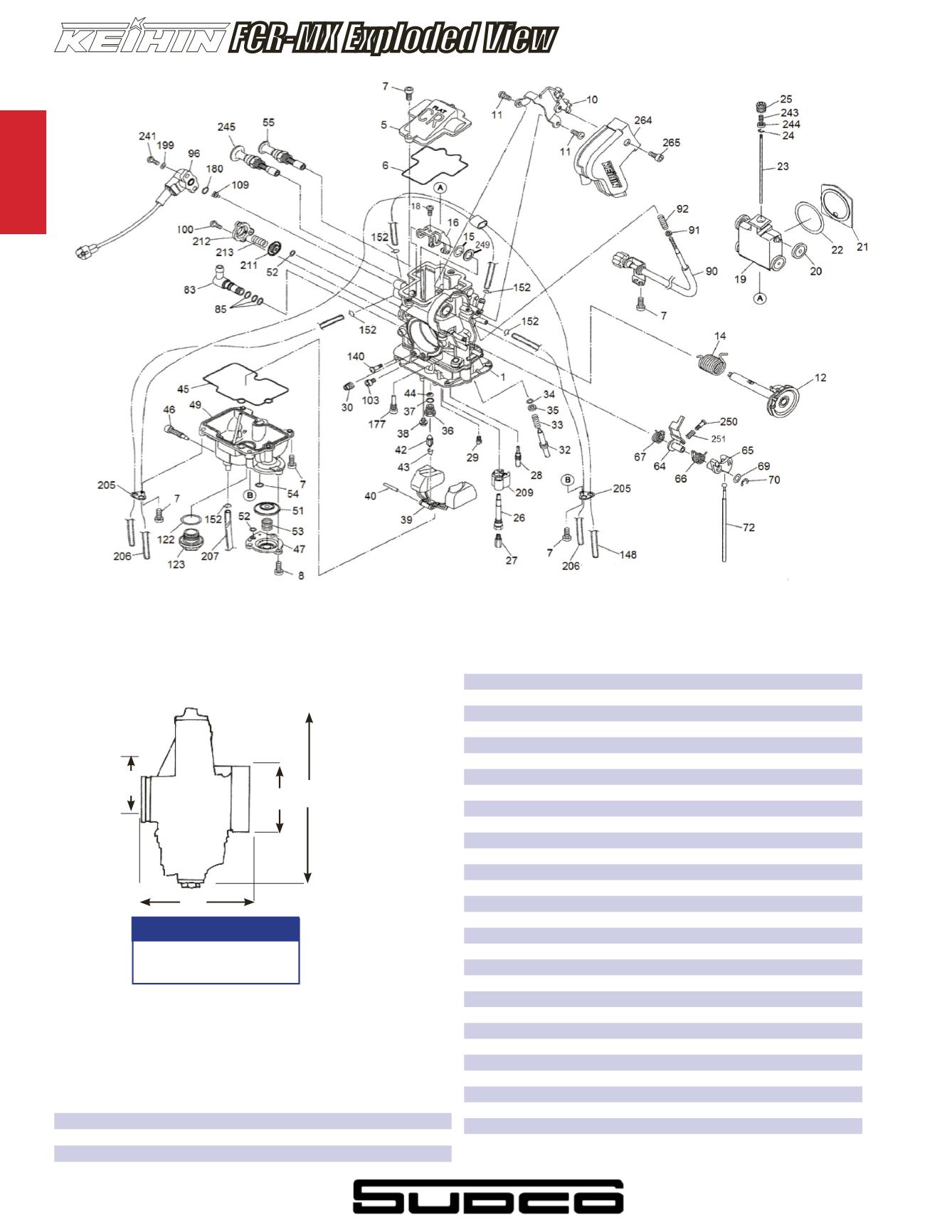

FCR-MX Exploded View

Carburetors are intended for off-road riding and

racing use only. Not legal for use in California or

other locations where similar pollution laws may

apply.
