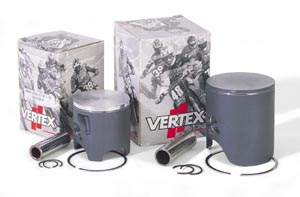

Sudco Vertex Pistons

OEM Piston Kits Application

Honda
Husqvarna
Kawasaki
KTM
Suzuki
TM
Yamaha

Racing Piston Kits Application

Honda
Suzuki
Yamaha

OEM Piston Kits

Make/ Model	Year	Part No.	Std. Bore Size Ref.	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	Rings	Clip
HONDA
CR80 (US) 83CC	90-02	626-100	47.00	Std.	46.95	46.96	46.97	-	-	626-100R	-
CR125	90-91	626-105	54.00	-	53.94	53.95	53.96	-	-	626-105R	626-900
	92-99	626-106	54.00	-	53.94	53.95	53.96	-	-	626-106R
	00-02	626-107	54.00	-	53.93	53.94	53.95	53.96	53.97	626-106R
CR250	89-94	626-125	66.40	-	66.35	66.36	66.37	-	-	626-125R	626-902
	95-96	626-126	66.40	-	66.35	66.36	66.37	-	-
	97-98	626-127	66.40	-	66.35	66.36	66.37	-	-
	99-01	626-136	66.40	-	66.35	66.36	66.37	-	-
	02	626-137	66.40	-	66.35	66.36	66.37	-	-
CR450	02	626-150	96.00	-	95.96	95.97	95.98	-	-	626-150R	626-914
HUSQVARNA
CR125/ CR-WR125	88-91	626-725	56.00	Std.	55.97	55.98	55.99	-	-	626-725R	626-905
	92-94	626-726	56.00	-	-	55.96	-	-	-
	95-96	626-727	56.00	-	-	55.96	-	-	-
	97-02	626-729	54.00	-	53.95	53.96	53.97	-	-	626-729R	626-900
CR-WR250	85-91	626-735	70.00	-	69.955	69.960	69.965	-	-	626-735R	626-906
CR-WR250	98-02	626-737	66.40	-	66.35	66.36	66.37	-	-	626-125R	626-902
KAWASAKI
KX80 (US) 82CC	92-00	626-600	48.00	Std.	47.94	47.95	47.96	-	-	626-600R	626-907
KX85	01-02	626-625	48.50	-	48.45	48.46	48.47	-	-	626-625R	626-907
KX125	92-93	626-605	54.00	-	53.96	53.97	53.98	-	-	626-605R	626-908
	94	626-606	54.00	-	53.95	53.97	53.98	-	-	626-606R	626-900
	95-97	626-607	54.00	-	53.96	53.97	53.98	-	-	626-607R
	98	626-608	54.00	-	53.96	53.97	53.98	-	-	626-608R
	99-00	626-609	54.00	-	53.96	53.97	53.98	-	-	626-609R
	01-02	626-610	54.00	-	53.96	53.97	53.98	-	-	626-205R
KX250	91-97	626-615	66.40	-	66.36	66.37	66.38	-	-	626-615R	626-902
	98-01	626-616	66.40	-	66.36	66.37	66.38	-	-	626-616R
	02	626-617	66.40	-	66.36	66.37	66.38	-	-	626-616R
KTM
SX50	01-02	626-740*	39.50	Std.	39.47	39.48	39.49	-	-	626-740R	626-912
SX60	97-02	626-744	43.50	-	43.47	43.48	-	-	-	626-744R	626-912
SX65	97-02	626-748**	45.00	-	443.97	44.98	-	-	-	626-748R	626-912
SX125	98-00	626-710	54.25	-	54.2	54.21	54.22	-	-	626-720R	626-900
SX125	01-02	626-713	54.00	-	53.95	53.96	53.97	-	-	626-105R	626-900
SX250/EXC	90-94	626-715	67.50	-	67.45	67.46	67.47	-	-	626-715R	626-909
	96-99	626-717	67.50	-	67.45	67.46	67.47	-	-	626-717R	626-909
	00-02	626-718	67.50	-	67.45	67.46	67.47	-	-	626-718R	626-902
SX360 SX380	96-01 98-01	626-723	78.00	-	77.95	77.96	-	-	-	626-723R	626-906
NOTE: * Order AB, CD, EF, GH instead of A, B, C, D. Order AB, CD, EF** instead of A, B, C.
SUZUKI
RM80 (US) 82CC	91-00	626-400	47.50	Std.	47.46	47.47	47.48	-	-	626-400R	626-907
RM125	90-99	626-405	54.00	-	53.96	53.97	53.98	-	-	626-405R	626-900
RM125	00-02	626-406	54.00	-	53.96	53.97	53.98	-	-	626-405R	626-900
RM250	89-95	626-425	67.00	-	66.95	66.96	66.97	-	-	626-425R	626-902
	96-97	626-426	66.40	-	66.35	66.36	66.37	-	-	626-426R
	98	626-427	66.40	-	66.35	66.36	66.37	-	-
	99	626-428	66.40	-	66.35	66.36	66.37	-	-
	00-02	626-429	66.40	-	66.35	66.36	66.37	-	-
TM
TM125	92-02	626-760	54.00	Std.	53.95	53.96	53.97	53.98	-	626-405R	626-900
YAMAHA
YZ80 (US) 82.9cc	93-02	626-200	47.00	Std.	46.96	46.97	46.98	-	-	626-200R	626-907
YZ125	92-93	626-205	56.00	-	55.965	55.975	55.985	-	-	626-205R	626-908
	94-96	626-206	54.00	-	53.94	53.95	53.96	-	-	626-206R	626-908
	97	626-207	54.00	-	53.94	53.95	53.96	-	-	626-207R	626-900
	98-01	626-208	54.00	-	53.94	53.95	53.96	-	-
	02	626-209	54.00	-	53.94	53.95	53.96	-	-
YFS200 Blaster	See ATV Pison Kit Page
YZ250	90-95	626-225	68.00	-	67.95	67.96	67.97	-	-	626-225R	626-902
	96-97	626-226	68.00	-	67.95	67.96	67.97	-	-	626-226R
	98	626-227	68.00	-	67.95	67.96	67.97	-	-	626-227R
	99-02	626-228	66.40	-	66.35	66.36	66.37	-	-	626-125R
YZF250/ WRF250	01-02	626-246	77.00	-	76.95	76.96	76.97	-	-	626-246R	626-910
YZF350 Banshee	See ATV Piston Kit Page
YZF400 WRF400	98-99 98-02	626-250	92.00	-	91.94	91.95	91.96	-	-	626-250R	626-911
YZF426 WRF426	00-02 01-02	626-254	95.00	-	94.94	94.95	94.96	-	-	626-254R	626-913

"D" Pistons are availaible in limited quantities. Measure cylinder carefully before installing any "D " piston.

Vertex Racing Piston Kits

To order, include Sudco # with letter size. (i.e. 626-105C) Replacement rings are one size for all pistons.

Make/Model	Year	Part Number	Std. Bore Size Ref.	A(mm)	B(mm)	C(mm)	D(mm)	Rings
HONDA
CR125 race without porthole in skirt.	92-99	626-115	54.00	Std.	53.94	53.95	53.96	626-106R
CR125 without porthole in skirt without lightening holes above pin.	92-99	626-116	54.00	-	53.94	53.95	53.96	626-106R
CR250 Single ring without lightening hole above pin.CR500 single ring design	97-99	626-135	66.40	-	66.35	66.36	66.37	626-127R
CR500 single ring design	85-99	626-155	89.00	-	89.50	90.00	90.50	Call
SUZUKI
RM125 without lightening holes above the pin.	90-99	626-415	54.00	Std.	53.96	53.97	53.98	626-405R
RM125 race dome & without lightening holesabove pin.	90-99	626-416	54.00	-	53.96	53.97	53.98	626-405R
YAMAHA
YZ125 without lightening holes above pin.	94-96	626-215	54.00	Std.	53.94	53.95	53.96	626-206R
YZ125 w/o lightening holes above pin & w/o porthole on the skirt.	97	626-216	54.00	-	53.94	53.95	53.96	626-207R
YZ250 single ring design	90-95	626-235	68.00	-	67.95	67.96	67.97	626-225R

"D" Pistons are availalble in limited quantifies. Measure cylinder carefully before insfalling any "D" piston.
