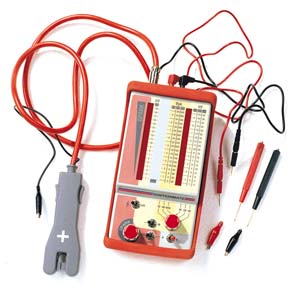

IgnitionMate      Order No. 08-0193 Compact Dual-Display Peak-Voltage Ignition Tester * Makes troubleshooting easier, quicker and more precise. * Can be used for on-road testing for intermittent faults which are difficult to trace. * Simultaneously monitors and displays two different ignition parameters-primary peak voltage and secondary voltage signals or peak voltage and spark energy. * Both pulsed and constant signals can be monitored and automatically displayed. * Uses 12V vehicle battery or its own internal 6AA battery source. * Batteries are protected against accidental discharge by auto-switching off if no signals are monitored after 2 minutes. * Comes in an impact-resistant rubber holder. * Complete kit includes a foam-lined storage and travel case with detailed instructions.

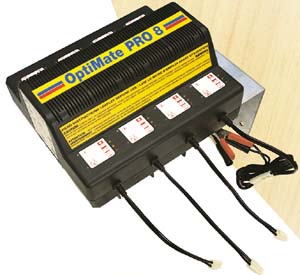

OptiMate PRO 8      Order No. 08-0191 The Ultimate Battery Management Center for Service Departments!! * Automacitally assesses, recovers, charges and tests up to 8 batteries simultaneously. * For all 12V lead-acid batteries - Lead-antimony, lead-calcium, sealed "MF" or "Gel" types. * Batteries of different types, sizes, and condition can be dealt with simultaneously. * Automatic (individual) detection and recovery mode for deep-discharged batteries. * Detection of shorted "cell" type defects. * Each battery individually optimized through electronic current and voltage monitoring. * Sensing circuitry eliminates overcharging - no gassing possible!! * Unique "double-check" circuitry ensures quickest optimal charge regardless of battery condition. * Automatic individually applied test for excessive rate of self-discharge. * Clear and simple battery status indicator panel for each battery - One glance is all that's needed. * Handy bracket available for optional wall-mounting above work benches - Save valuable bench space for batteries and keeps OptiMate away from acid contamination. * 1.2 Amp constant-current charge, then constant voltage float charge to keep batteries fresh and ready to go. * Reliable, field-proven design. * Full automatic electronic protection against inverse polarity connection and short circuit -there are no fuses to replace. * So safe, it's impossible to generate a spark, even by short-circuiting!! Optional Wall Mount: Order No. 08-0197

Note: Per Motion Pro, part number 08-0196 VacuumMate has been discontintinued.
It has been updated and replaced by the following:

VacuumMate Allweather      Order No. 08-0251 (with internal rechargeable batteries)                                                     Order No. 08-0252 (without internal rechargeable batteries) The VacuumMate Allweather models are unique, rugged yet sensitive multifunction electronic instruments. Monitoring the negative and positive pressure waveform signals from vacuum ports on intake manifolds of multi-cylinder engines, the VacuumMate Allweather allows the extremely accurate synchronization of up to 4 carburetors or injection throttle bodies at once (6 if used with the 4 into 2 manifold adapter), in a choice of 3 range scales (5-25, 20-40, 35-55 cm/Hg). No loss of resolution occurs as each range is selected, unlike other tools on the market. In average (AVE) mode, bright, rapidly reacting LED-arrays display the average intake vacuum (cm/Hg) on each channel at a resolution of 0.5 cm of mercury. New for 2002, the VacuumMate Allweather features a buoyant and highly water resistant housing to protect the instrument in the event that it is dropped overboard or used in inclement     weather conditions. In "DYN" mode, the values and relative position of the pressure wave-forms of each cylinder can be compared for an instant diagnostic check for factors which would affect engine balance such as a valve leak, and air intake blockage, or a leaking intake manifold. Pre-calibrated at the factory. Thereafter, it automatically self adjusts to barometric pressure changes. Another switch allows the user to display two or four stroke engine rpm up to 2500. This is useful for setting the idle and for tuning. Two Sets (5 and 6mm) of unique "flexi-rigid" adapters facilitate awkward threaded manifold connections. Full operating instructions included.

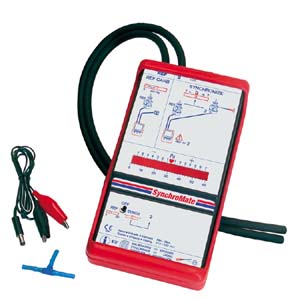

SynchroMate 2 Precise Electronic Carburetor Synchronization. Designed for Twin-Cylinder, Dual-Carb Motorcycles. * Accurate - Synchronize to within 0.2cm HG, true resolution & no friction or inertia. * Compact - Can easily be held in one hand. * Calibrated - Pre-calibrated at the factory. Thereafter, it automatically self adjusts to barometric pressure changes. * Rugged - No glass, no mercury, no sensitive dial gauges, no moving parts and comes with a protective rubber holster. * Affordable - Costs no more than a set of good quality dial gauges. * Trouble Free - Built using reliable solid-state electronics. * Easy - Just adjust each carb against the reference carb until the dual LED flashes at the "Pa" mark. * Comes complete with carrying case and two 5mm & two 6mm rigid threaded carb adapters. * Includes a tachometer with 50rpm increments. Order No. 08-0194

Replacement Parts:	Rigid Threaded Carb Adapter	5mm	08-0199
		6mm	08-0200
	Flexi-Rigid Threaded Carb Adapter:	5mm	08-0201
		6mm	08-0202
	Calibration Kit		08-0203
	(includes small screwdriver & 4 replacement cover seals)

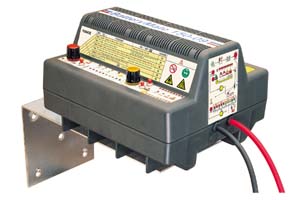

BatteryMate      Order No. 08-0192

Unique combination of load tester and powerful constant current charger with automatic desulfating action.

Load Tester Features:
* Six Load Test Choices, 15A to 150 Amps, for all starter batteries from 2.5Ah to 45Ah. * Load Test Duration: choose 3 seconds (standard crank test ) or 15 seconds (long crank & battery capacity check). * Tester automatically disabled by programmed "REST" periods of 20 seconds following a 3-second TEST, or 60 seconds following a 15-second TEST, to protect against overheating. * Clear LED indications to user during "TEST" & "REST" (disabled) periods. * "CHARGE>4h" LED indications when battery is too weak to show a test result. * Automatic (resetting) disablement in case of overheating, with LED status indication.

Automatic Charger Features:
* 6 Constant Current settings from 1A to 9A for correct, most time-effective charging. * Powerful, rapid Constant Current charging mode automatically followed by 13.8V Constant Voltage maintenance mode until selected time (maximum 6 hours) has elapsed. * Charging mode switch-over to "maintenance" is triggered by accurate voltage sensing, with a positive selection for the higher switch-over voltage required by "MF" fully sealed glass-wool-separator type batteries. A lower V-switch over occurs automatically for other batteris. * A LED signals the end of the main constant current charge & progression to maintenance mode, to indicate the battery can be tested for starting, or can be left connected for further "top-up" charging. * Charging timer selectable in half-hour increments up to 3 hours, then hourly up to 6 hours. * LED indication of elapsed time, half-hourly up to 3 hours, then hourly up to 6 hours. * Effective high-voltage (24V max) mode engages automatically for recovery of deep-discharged and many sulfated batteries (if the lead sulfate remains on the plates). * Simple LED indications for "Normal charge proceeding," "Battery in deep-discharge recovery mode," "Battery should be able to start, but first subject to Load Test" and "Battery fully saturated, subject to Load Test." * Elapsed charge time, V-switch-over & battery charging status LEDs continue to display until AC input or battery clamps are disconnected, or until charged battery is tested. * Automatic charger switch-off in case of charge time selection change during charging.
Optional Wall Mount: Order No. 08-0197

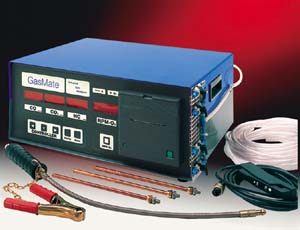

GasMate      Order No. 08-0190 Analyzer uniquely designed for the requirements of motorcycle application though equally applicable to other engines. * Uses the dispersive infrared ray absorption principle, the only dependable method for precise analysis of exhaust gases. Without this precision, emissions information derived is of no practical use in performance diagnostic applications. * With its optional 4-tap branch connection accessory, easily retrofitted on the side of its housing, sequential comparative testing is easily carried out, and the results can be printed out on the (optional) built-in dot-matrix printer for handy and permanent comparative record. * Large, easy-to-read digital display. * Oversized replaceable filters. * Automatic electric zero. * 10-second response time. * Sealed membrane switch panel. Options:                                                             Order No. Oxygen Sensor                                                  08-0204 On-Board Printer                                              08-0205 Inductive RPM Pickup & Display                   08-0206 Switchable 4-Branch Manifold                        08-0207

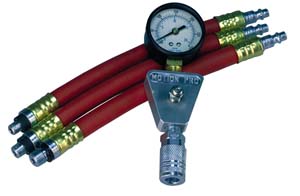

Compression Test Set      Order No. 08-0188 * Contains hoses for 10, 12 & 14mm spark plug applications. * Kit includeds a quick disconnect with pressure release valve, 300 psi gauge and plastic carrying case.

Multi-Valve Tool      Order No. 08-0165 * Used to install valve spring keepers. * Replaces the large cumbersome valve spring compressor. * Designed to firt the valves of 4- and 5-valve per-cylinder heads.

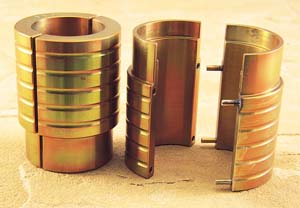

Fork Seal Drivers * CAD-II plated carbon steel * Split design * Each driver is approxi mately 25oz Order No. Description 08-0170 39 mm 08-0123 41 mm 08-0124 43 mm 08-0125 45 mm 08-0138 46/47 mm (combo) 08-0171 49/50 mm (combo)
