NGK Spark Plugs
NGK resistor covers are to be used with the resistor type spark plugs. The covers are used to suppress the effect gained against radio frequency interference. Applications: motorcycles, snowmobiles, and general purpose engines.

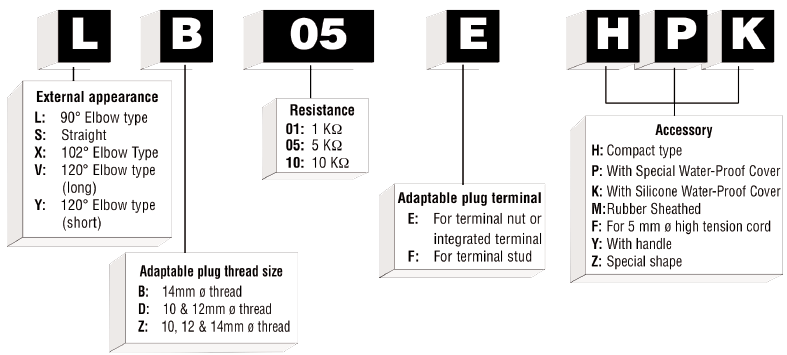

NGK Resistor Covers

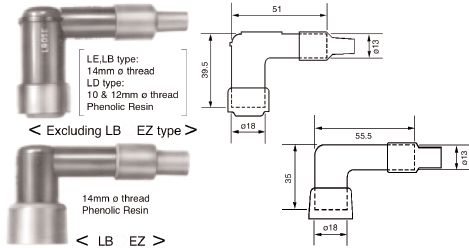

NGK LB Resistor Covers
NGK Part Number Order No.
LB01E207-045
LB05E 207-046
LB01EP 207-048
LB05EP 207-005
LB05F 207-050
LB05FP 207-006
LB05EZ 207-051
LB05EZA 207-052
LB10E 207-055

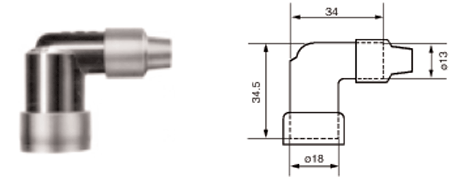

NGK LZFH Resistor Covers
NGK Part Number Order No.
LZFH207-010

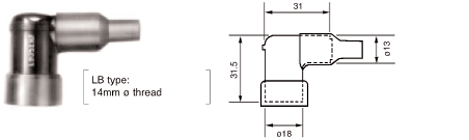

NGK LB10EH Resistor Covers
NGK Part Number Order No.
LB10EH207-056

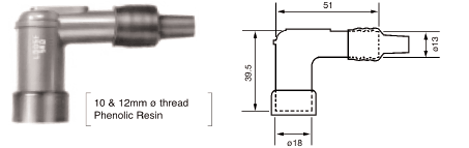

NGK LD05F Resistor Covers
NGK Part Number Order No.
LD05F207-060
LD05FP207-061

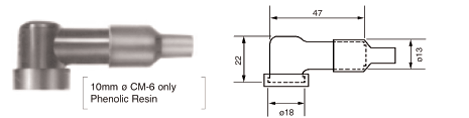

NGK LC05EFK Resistor Covers
NGK Part Number Order No.
LC05EFK207-058


NGK YB05F Resistor Covers
NGK Part Number Order No.
YB05F207-080
YB05FP207-030


NGK XB05F Resistor Covers
NGK Part Number Order No.
XB05F207-073
XB05F 207-073
XB05FP 207-074
XD05F 207-077
XD05FP 207-025

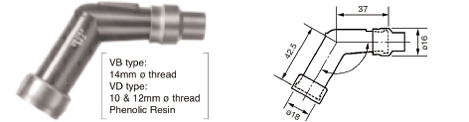

NGK VB05E Resistor Covers
NGK Part Number Order No.
VB05E 207-065
VB05F 207-066
VB05FP 207-067
VD05F 207-070
VD05FP 207-020

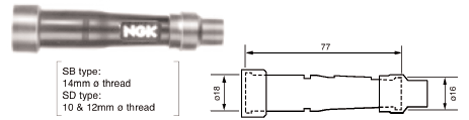

NGK SB05E Resistor Covers
NGK Part Number Order No.
SB05E 207-039
SB05F 207-040
SB05FP 207-041
SD05F 207-042
SD05FP 207-015

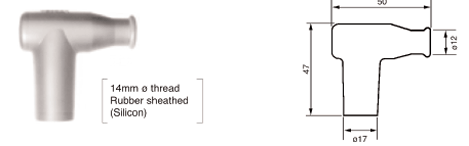

NGK TB05EM Resistor Covers
NGK Part Number Order No.
TB05EM (red) 207-034

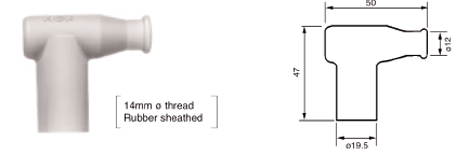

NGK TB05EMA Resistor Covers
NGK Part Number Order No.
TB05EMA (Black) 207-035
TB05EMA (Green) 207-036
TB05EMD (Black) 207-037

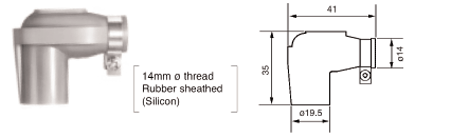

NGK LBER Resistor Covers
NGK Part Number Order No.
LBER (Blue) 207-008

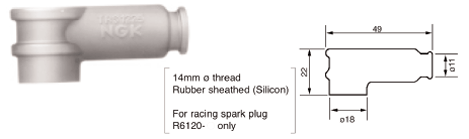

NGK TRS1225 Resistor Covers
NGK Part Number Order No.
TRS1225 207-085

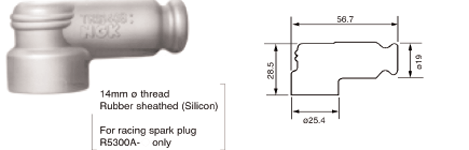

NGK TRS1408F Resistor Covers
NGK Part Number Order No.
TRS1408F 207-086

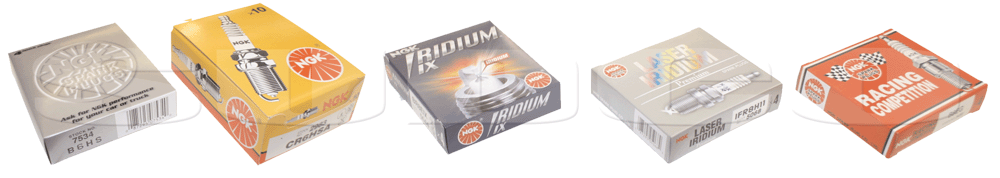

NGK Spark Plugs

NGK Spark Plugs
Utilizing a wide variety of materials, from standard copper-core type to Iridium, NGK is the world’s leader in spark plug engineering andtechnology. NGK Spark Plugs are original equipment on virtually every automotive, ATV, motorcycle, marine, scooter and small engine applications.

Standard & Resistor Spark Plugs
The workhorse, at the heart of smooth-running engines worldwide. Available in standard or resistor.
  • OEM quality
  • Triple-Gasket Sealing Process
  • Consistent Performance
  • Plug of choice in millons of Motorcycles, ATV’s and Scooters
    • NGK No. Thread Size Reach Hex Qt Order No.
    B10ES 14mm 3/4” 13/16” Box/4 206-048
    B4 14mm 3/8” 13/16” Box/10 206-010
    B5HS 14mm 1/2” 13/16” Box/10 206-015
    B6ES 14mm 3/4” 13/16” Box/4 206-017
    B6HS 14mm 1/2” 13/16” Box/4 206-019
    B6L 14mm 7/16” 13/16” Box/10 206-020
    B6S 14mm 3/8” 13/16” Box/10 206-021
    B7ES 14mm 3/4” 13/16” Box/4 206-023
    B7HS 14mm 1/2” 13/16” Box/10 206-025
    B8ES 14mm 3/4” 13/16” Box/10 206-032
    B8HS 14mm 1/2” 13/16” Box/10 206-035
    B8S 14mm 3/8” 13/16” Box/10 206-037
    B9ES 14mm 3/4” 13/16” Box/10 206-042
    B9HS 14mm 1/2” 13/16” Box/10 206-045
    BM6A 14mm 3/8” 3/4” Box/10 206-170
    BMR6A 14mm 3/8” 3/4” Box/10 206-171
    BP4HS 14mm 1/2” 13/16” Box/10 206-059
    BP5EA-L 14mm 3/4” 13/16” Box/4 206-174
    BP5ES 14mm 3/4” 13/16” Box/4 206-175
    BP5ES-11 14mm 3/4” 13/16” Box/4 206-050
    BP5HS 14mm 1/2” 13/16” Box/10 206-052
    BP6ES 14mm 3/4” 13/16” Box/4 206-053
    BP6HS 14mm 1/2” 13/16” Box/4 206-054
    BP7ES 14mm 3/4” 13/16” Box/4 206-055
    BP7HS 14mm 1/2” 13/16” Box/4 206-056
    BP8ES 14mm 3/4” 13/16”Box/10 206-058
    BP8HS 14mm 1/2” 13/16” Box/10 206-057
    BP9ES 14mm 3/4” 13/16” Box/10 206-520
    BPR4HS 14mm 1/2” 13/16” Box/10 206-198
    BPR5ES-11 14mm 3/4” 13/16” Box/4 206-060
    BPR5HS 14mm 1/2” 13/16” Box/10 206-550
    BPR6ES 14mm 3/4” 13/16” Box/4 206-061
    BPR6ES-11 14mm 3/4” 13/16” Box/4 206-560
    BPR6HS 14mm 1/2” 13/16” Box/10 206-062
    BPR6HSA 14mm 1/2” 13/16” Box/10 206-199
    BPR7ES 14mm 3/4” 13/16” Box/10 206-063
    BPR7ES-11 14mm 3/4” 13/16” Box/10 206-064
    BPR7HS 14mm 1/2” 13/16” Box/10 206-065
    BPR8ES 14mm 3/4” 13/16” Box/10 206-068
    BPR8HS 14mm 1/2” 13/16” Box/10 206-066
    BR6EB-L-11 14mm 3/4” 13/16” Box/4 206-576
    BR6HS 14mm 1/2” 13/16” Box/10 206-180
    BR6HSA 14mm 1/2” 13/16” Box/10206-186
    BR7ES 14mm 3/4” 13/16” Box/10 206-067
    BR7HS 14mm 1/2” 13/16” Box/10 206-181
    BR8ES 14mm 3/4” 13/16” Box/10 206-072
    BR8ES solid 14mm 3/4” 13/16” Box/10 206-300
    NGK No. Thread Size Reach Hex Qt Order No.
    BR8HS 14mm 1/2” 13/16” Box/10 206-195
    BR8HSA 14mm 1/2” 13/16” Box/10 206-188
    BR9ES 14mm 3/4” 13/16” Box/10 206-074
    BR9ES solid 14mm 3/4” 13/16” Box/10 206-301
    BR9HS 14mm 1/2” 13/16” Box/10 206-182
    BUHX 14mm 1/2” 13/16” Box/10 206-594
    BUR6EB-11 14mm 3/4” 13/16” Box/10 206-079
    C6HA 10mm 1/2” 5/8” Box/10 206-191
    C6HSA 10mm 1/2” 5/8” Box/10 206-080
    C7E 10mm 3/4 5/8” Box/10 206-250
    C7HSA 10mm 1/2” 5/8” Box/10 206-081
    C8E 10mm 3/4 5/8” Box/10 206-193
    C8EH-9 10mm 3/4 5/8” Box/10 206-204
    C8HSA 10mm 1/2” 5/8” Box/10 206-082
    C9E 10mm 3/4 5/8” Box/10 206-194
    CR10EK 10mm 3/4” 5/8” Box/10 206-217
    CR5HSA 10mm 1/2” 5/8” Box/10 206-083
    CR6HS 10mm 1/2” 5/8” Box/10 206-084
    CR6HSA 10mm 1/2” 5/8” Box/10 206-085
    CR7HS 10mm 1/2” 5/8” Box/10 206-086
    CR7HSA 10mm 1/2” 5/8” Box/10 206-200
    CR8E 10mm 3/4” 5/8” Box/10 206-196
    CR8EH9 10mm 3/4” 5/8” Box/10 206-088
    CR8EK 10mm 3/4” 5/8” Box/10 206-215
    CR9E 10mm 3/4” 5/8” Box/10 206-197
    CR9EH9 10mm 3/4” 5/8” Box/10 206-205
    CR9EK 10mm 3/4” 5/8” Box/10 206-216
    D6EA 12mm 3/4” 18mm Box/10 206-089
    D7EA 12mm 3/4” 18mm Box/10 206-090
    D8EA 12mm 3/4” 18mm Box/10 206-091
    D8HA 12mm 1/2” 18mm Box/10 206-093
    D9EA 12mm 3/4” 18mm Box/10 206-092
    DCPR7E 12mm 3/4” 5/8” Box/10 206-322
    DP7EA-9 12mm 3/4” 18mm Box/10 206-099
    DP8EA-9 12mm 3/4” 18mm Box/10 206-100
    DP9EA-9 12mm 3/4” 18mm Box/10 206-101
    DPR7EA-9 12mm 3/4” 18mm Box/10 206-103
    DPR8EA-9 12mm 3/4” 18mm Box/10 206-105
    DPR8Z 12mm 3/4” 18mm Box/10 206-273
    DPR9EA-9 12mm 3/4” 18mm Box/10 206-106
    DPR9Z 12mm 3/4” 18mm Box/10 206-190
    DR7EA 12mm 3/4” 18mm Box/10 206-320
    DR7ES 12mm 3/4” 18mm Box/10 206-108
    DR8EA 12mm 3/4” 18mm Box/10 206-119
    DR8ES 12mm 3/4” 18mm Box/10 206-109
    DR8ES-L 12mm 3/4” 18mm Box/10 206-110
    DR8HS 12mm 1/2” 18mm Box/10 206-112
    DR9EA 12mm 3/4” 18mm Box/10 206-120
    J9A 12mm 3/4” 18mm Box/10 206-150
    J10A 12mm 3/4” 18mm Box/10 206-160
    JR8C 12mm 3/4” 18mm Box/10 206-146
    JR9B 12mm 3/4” 18mm Box/10 206-157
    JR9C 12mm 3/4” 18mm Box/10 206-156
    PJR7A 10mm 3/4”5/8” Box/10 206-235




    Iridium IX Spark Plugs
    Iridium IX Spark Plugs are the most technologically advanced high performance plugs available. Ultra-small diameter Iridium centerelectrode reduces voltage requirements and extends ignition systemlife. New metal shell plating has excellent anti-corrosion qualities
    NGK No. Thread Size Reach Hex Qt Order No.
    BPR5EIX-11 14mm 3/4” 13/16” Box/4 206-325
    BR10EIX 14mm 3/4” 13/16” Box/4 206-341
    BR10HIX 14mm 1/2” 13/16” Box/4 206-335
    BR7EIX 14mm 3/4” 13/16” Box/4 206-338
    BR7HIX 14mm 1/2” 13/16” Box/4 206-332
    BR8EIX 14mm 3/4” 13/16” Box/4 206-339
    BR9EIX 14mm 3/4” 13/16” Box/4 206-340
    C7HVX 10mm 1/2” 5/8” Box/4 206-252
    CR7HIX 10mm 3/4” 5/8” Box/4 206-355
    CR8EHIX-9 10mm 3/4” 5/8” Box/4 206-345
    CR8EIX 10mm 3/4” 5/8” Box/4 206-349
    CR9EHIX-9 10mm 3/4” 5/8” Box/4 206-346
    CR9EIX 10mm 3/4” 5/8” Box/4 206-350
    DCPR7EIX 12mm 3/4 18mm Box/4 206-323
    DPR8EIX-9 12mm 3/4 18mm Box/4 206-270
    DPR9EIX-9 12mm 3/4 18mm Box/4 206-271
    Lazer Iridium IX Spark Plugs
    CR10EK 10mm 3/4” 5/8” Box/10 206-217
    CR7E 10mm 3/4” 5/8” Box/10 206-210
    DR8EIX 12mm 3/4” 18mm Box/4 206-360
    IFR8H11 10mm 3/4” 5/8” Box/4 206-380
    IMR8C-9H 10mm 3/4” 5/8” Box/4 206-385
    G-Type Racing Spark Plugs
    Nickel alloy fine wire electrode.
    NGK No. Thread Size Reach Hex Qt Order No.
    B10EG 14mm 3/4” 13/16” Box/4 206-046
    B8EG 14mm 3/4” 13/16” Box/4 206-030
    B9EG 14mm 3/4” 13/16” Box/4 206-040
    BR10EG 14mm 3/4” 13/16” Box/4 206-076
    BR8EG 14mm 3/4” 13/16” Box/4 206-070
    BR9EG 14mm 3/4” 13/16” Box/4 206-073
    R4118S-8 14mm 3/4” 13/16” Box/4 206-228
    R4118S-9 14mm 3/4” 13/16” Box/4 206-233
    R5184-10 14mm 3/4” 13/16” Box/4 206-232
    R5672A-9 14mm 3/4” 5/8” Box/4 206-231
    R6254E-105 14mm 3/4” 13/16” Box/4 206-225
    R6254K-105 14mm 3/4” 13/16” Box/4 206-226
    R7376-10 14mm 3/4” 13/16” Box/4 206-227
    B105EGV 14mm 3/4” 13/16” Box/4 206-316
    B10EGV 14mm 3/4” 13/16” Box/4 206-047
    B8EGV 14mm 3/4” 13/16” Box/4 206-031
    B95EGV 14mm 3/4” 13/16” Box/4 206-315
    B9EGV 14mm 3/4” 13/16” Box/4 206-041




    VX-Type Platinum Spark Plugs
    Fine wire electrode, non resistor
    NGK No. Thread Size Reach Hex Qt Order No.
    B8HVX 14mm 1/2” 13/16” Box/4 206-243
    C8EVX 10mm 3/4” 5/8” Box/4 206-262
    D7EVX 12mm 3/4 18mm Box/4 206-265
    D8EVX 12mm 3/4 18mm Box/4 206-266

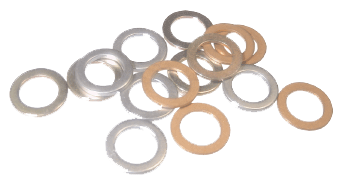

    NGK Spark Plugs Index Washers
    NGK Spark Plug Indexing Washer Kit
    Kits include 3 different thicknesses. (total 15pcs.)
    Size Order No.
    10mm206-200
    12mm206-201
    14mm206-202
