Sudco O.E.M. Carburetor Holders

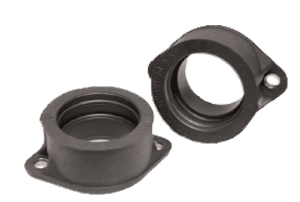

Sudo Carb Holders 005-818
Sudco Intake Carb Holders
Use with the original OEM carburetors. Made in Japan to OEM specifications. Available in kits, pairs and individual (each). Order per Sudco part number.
Stock OEM hose clamps must be used when installed.

NOTE: Some of the applications listed require intake o-ring or gasket. LH to RH from left to right behind engine when installing.
KAWASAKI
005-865Carb Holder Kit - Includes qty 2
LH carb holders and qty 2 RH carb holders.
005-856
005-855		16065-029 LH side only - sold pair
16065-028 RH side only - sold pair
Application Year
Z1/Z1A/Z1B 900 73-75
KZ900A4 1976
KZ900B1 LTD 1976
KZ1000A1/A2 77-78
KZ1000A3/A4 MKII 79-80
KZ1000B1/B2/B3/B4 LTD 77-80
KZ1000C1-C4 Police 78-81
KZ1000E1/E2 Shaft 79-80
KZ1000D1 Z1R 1978
KZ1000D3 Z1R 1980
005-866Carb Holder Kit - Includes qty 4 carb holders.
005-81816065-1135 LH & RH sides - sold pair
Application Year
KZ1000J1/J2 81-82
KZ1000K1/K2 LTD 81-82
KZ1000M1/M2 CSR 81-82
KZ1000P1-P21 Police 82-02
KZ1000P24 Police 2005
KZ1000R1 Replica 1982
KZ1100A1/A2 Shaft 81-82
KZ1100B2 GPz 1982
KZ1100D1 Spectre 1982
005-867Carb Holder Kit - Includes qty 4 carb holders.
005-85716065-1131 LH & RH sides - sold pair
Application Year
KZ1000J3 1983
KZ1000R2 Replica 1983
KZ1100A3 Shaft 1983
KZ1100D2 Spectre 1983
KZ1100L1 LTD 1983
ZN1100B1/B2 LTD 84-85
ZX1100A1/A2 GPz 83-84
005-870Carb Holder Kit - Includes qty 4 carb holders.
005-900016065-1130 LH & RH sides - sold each
Application Year
ZX100A1/A2 Ninja 1000R 86-87
005-871Carb Holder Kit - Includes qty 2 carb holders.
005-900016065-1130 LH & RH sides - sold each
Application Year
EX500A1/A2/A3/A4/A5/A6/A6 87-93
EX500D1/D2/D3 Ninja 500 94-96
EX500D4-D12 Ninja 500R 97-05
EX500D6F Ninja 500R 2006
005-872Carb Holder Kit - Includes qty 4 carb holders.
005-900216065-1129 LH & RH sides - sold each
Application Year
ZX600A1/A2/A3 Ninja 600R 85-87
ZX600B1 Ninja 600RX 1987
ZX600C1-C10 Ninja 600R 88-97
005-873Carb Holder Kit - Includes qty 4 carb holders.
005-900516065-1108 LH & RH sides - sold each
Application Year
ZX900A1/A2/A3 Ninja 900R 84-86
005-874Carb Holder Kit - Includes qty 4 carb holders and 4 intake o-rings
005-9006
005-9100		16065-1182 LH & RH sides - sold each
92055-1401 O-Ring - sold each
Application Year
ZX1000B1/B2/B3 Ninja ZX-1088-90
005-875Carb Holder Kit - Includes qty 4 carb holders and 4 intake o-rings
005-9007
005-9100		16065-1210 LH & RH sides - sold each
92055-1401 O-Ring - sold each
Application Year
ZX1100C1/C2/C3/C4 Ninja ZX-11 90-93
ZX1100D1-D9 Ninja ZX-11 93-01
005-876Carb Holder Kit - Includes qty 4 carb holders and 4 intake o-rings
005-9013
005-9100		16065-1307 LH & RH sides - sold each
92055-1401 O-Ring - sold each
Application Year
ZR1100C3/C4 ZRX1100 99-00
ZX1100E1/E2/E3 GPz 1100 95-97
ZX1100F1 GPz 1100 (ABS) 1997
ZR1200A1/A2/A3/A4/A5 ZRX1200 01-05

SUZUKI
005-890Carb Holder Kit - Includes qty 4 carb holders
and qty 4 intake o-rings.
005-903113101+34E00 - sold each
Application Year
GSX-R600V/W/X/Y 97-00
005-891Carb Holder Kit - Includes qty 2 LH carb holders,
qty 2 RH carb holders and qty 4 intake o-rings.
005-9032
005-9033		13101-26E01 LH 1&2 - sold each
13103-26E01 RH 3&4 - sold each
Application Year
GSF600ST/SV/SW/SX/SY Bandit 96-00
GSF600SK1/SK2/SK3 Bandit 01-03
005-892Carb Holder Kit - Includes qty 4
carb holders and qty 4 intake o-rings.
005-9034
005-9035
005-9036
005-9037		13101-17C01 (LH 1) - sold each
13102-17C01 (LH 2) - sold each
13103-17C01 (RH 3) - sold each
13104-17C01 (RH 4) - sold each
Application Year
GSX750FK/FL/FM/FN/FP Katana 89-93
GSX750FR/FS/FT/FV Katana 94-97
GSX-R750J/K 88-89
005-893Carb Holder Kit - Includes qty 4
carb holders and qty 4 intake o-rings.
005-9038
005-9039
005-9040
005-9041		13101-17D00 (LH 1) - sold each
13102-17D00 (LH 2) - sold each
13103-17D00 (RH 3) - sold each
13104-17D00 (RH 4) - sold each
Application Year
GSX-R750L/M/N 90-92
USA 49 state applications only
005-894Carb Holder Kit - Includes qty 4
carb holders and qty 4 intake o-rings.
005-9042
005-9043
005-9044
005-9045		13101-40C00 (LH 1) - sold each
13102-40C00 (LH 2) - sold each
13103-40C00 (LH 3) - sold each
13104-40C00 (LH 4) - sold each
Application Year
GSX1100GM/GN/GP Shaft 91-93
GSX-R1100K/L/M/N 89-92
GSF1200SV/SW/SX/SY Bandit 97-00
005-895Carb Holder Kit - Includes qty 4
carb holders and qty 4 intake o-rings.
005-9046
005-9047
005-9048		13101-17E01 (LH 1&2) - sold each
13103-17E01 (RH 3) - sold each
13104-17E01 (RH 4) - sold each
Application Year
GSX-R750WP/WR/WS 93-95
USA 49 state applications only
YAMAHA
005-880Carb Holder Kit - Includes qty 1
carb holder and qty 1 intake gasket.
005-9061
005-9150		583-13565-01-00 Carb Holder - sold each 583-13556-01-00 Gasket - sold each
Application Year
SR500E/F/G/H 78-81
TT500C/D/E/F/G/H 76-81
XT500C/D/E/F/G/H 76-81
005-881Carb Holder Kit - Includes qty 1
carb holder and qty 1 intake gasket.
005-9063
005-9064
005-9152		33M-13586-01-00 1&2 LH - sold each
33M-13596-01-00 3&4 RH - sold each
33M-13556-00-00 Gasket - sold each
Application Year
FZ600S/SC/T/TC/U/UC 86-88
005-882Carb Holder Kit - Includes qty 1
carb holder and qty 1 intake gasket.
005-9063
005-9064
005-9153		33M-13586-01-00 1&2 LH - sold each
33M-13596-01-00 3&4 RH - sold each
3KM-13556-00-00 Gasket - sold each
Application Year
YX600S/SC/T/TC/U/UC Radian 86-88
YX600W/WC/A/AC Radian 89-90
005-883Carb Holder Kit - Includes qty 2 LH
and qty 2 RH carb holders.
005-9066
005-9067		3GM-13597-00-00 1&2 LH - sold each
3GM-13598-00-00 3&4 RH - sold each
Application Year
YZF750RF/RFC 1994
YZF750RH/RHC/RJ/RJC/RK/RKC 96-98
FZR1000W/WC/A/AC/B/BC 89-91
FZR1000D/DC/E/EC/F/FC/G/GC 92-95
YZF1000RJ 1997
005-879 Carb Holder Kit -Includes qty 2 LH carb holders and qty 2 RH carb holders.
005-9059 2H7-13586-00-00 LH - sold each
005-9060 2H7-13596-00-00 RH - sold each
Application Year
XS1100E/F/G/H 78-81
XS1100LG/LH Midnight Special 80-81
XS1100SF/SG/SH Special 79-81
005-884Carb Holder Kit - Includes qty 1 LH, carb holder,
qty1 RH carb holder and qty 2 intake o-rings.
005-9071
005-9072
005-9107		43F-13586-01-00 LH - sold each
43F-13596-01-00 RH - sold each
93210-36549 O-Ring - sold each
Application Year
TT600N 1985
XT600L/LC/N/NC/S/SC/T/TC 84-87
XT600U/UC/W/WC 88-89
005-878 Carb Holder Kit - Includes qty 1 LH carb holder and qty 1 RH carb holder.
005-9057 447-13555-01-00 LH - sold each
005-9058 447-13565-01-00 RH - sold each
Application Year
TX650A 1974
XS650B/C/D 75-77
005-885Carb Holder Kit - Includes qty 1 LH carb holder,
qty1 RH carb Holder and qty 2 intake o-rings.
005-9071
005-9074
005-9107		43F-13586-01-00 LH - sold each
1VJ-13596-00-00 RH - sold each
93210-36549 O-Ring - sold each
Application Year
XT600EA/EAC/EB/EBC/ED/EDC 90-92
XT600EE/EEC/EF/EFC/EG/EGC 93-95
005-877 Carb Holder Kit - Includes qty 1 LH carb holder and qty 1 RH carb holder.
005-9055 3G1-13586-00-00 LH - sold each
005-9056 3G1-13596-00-00 RH - sold each
Application Year
XS650G/H Special II 80-81
XS650SG/SH Special 80-81
XS650SJ/SK Heritage Special 82-83
005-886Carb Holder Kit - Includes qty 1 LH carb holder,
qty1 RH carb holder and qty 2 intake o-rings.
005-9071
005-9074
005-9107		43F-13586-01-00 LH - sold each
1VJ-13596-00-00 RH - sold each
93210-36549 O-Ring - sold each
Application Year
XVS650AK/AKC/AL/ALC V-Star Classic 98-99
XV650AM/AMC/AN/ANC V-Star Classic 00-01
XVS650AP/APC/AR/ARC/AS V-Star Classic 02-04
XVS650AT/ATC V-Star Classic 2005
XVS650ATR/ATRC/ATS V-Star Silverado 03-04
XVS650ATT/ATTC V-Star Silverado 2005
XVS650K/KC/L/LC V-Star Custom 98-99
XVS650M/MC/N/NC V-Star Custom 00-01
XVS650P/PC/R/RC/S/T/TC V-Star Custom 02-05
005-888 Carb Holder Kit - Includes qty 3 carb holders.
005-9068 2F3-13586-01-00 Carb Holder - sold each
Application Year
XS750E/F 78-79
XS750SE/SF Special 78-79
XS850G/H 80-81
XS850LG/LH Midnight Special 80-81
XS850SG/SH Special 80-81
005-887Carb Holder Kit - Includes qty 2 LH and qty 2 RH carb holders.
005-9086
005-9087		4XV-13598-00-00 1&2 LH - sold each
4XV-13597-00-00 3&4 RH - sold each
Application Year
YZF-R1K/KC/L/LC/M/MC/N/NC 98-01
YZF-R1SN/SNC Champions Limited Edition 2001

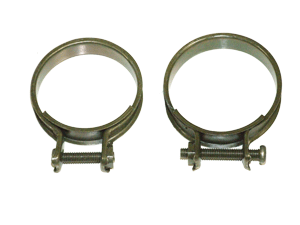

Sudo Carb Holders Clamps 005-950 & 005-995
Carb Holder Clamps
Fit stock carb holder. Dark green color.
Made in Japan. Sold each, and in sets of 4.
005-950Carb Holder Clamp - each (45.56mm I.D.)
005-950SCarb Holder Clamp Set of 4
Application Year
Z1/A/B-900 73-75
KZ900A4/A5 76-77
KZ1000A1/A2 77-78
KZ1000A3/A3A/A4 MKII 79-80
KZ1000B1/B2/B3/B4 LTD 77-78
KZ1000D1 Z1R 1978
KZ1000D3 Z1R 1980
KZ1000E1/E2 Shaft ST 79-80

005-995Carb Holder Clamp - each (53mm I.D.)
005-995SCarb Holder Clamp Set of 4
Application Year
KZ1000J1/J2/J3 81-83
KZ1000K1/K2 81-82
KZ1000M1/M2 CSR 81-82
KZ1000P1-P21 Police 82-02
KZ1000P24 Police 2005
KZ1000R1/R2 Replica 82-83
KZ1100A1/A2/A3 Shaft 81-83
KZ1100D1/D2 Spectre 82-83
KZ1100L1 Shaft LTD 1983
ZN1100B1/B2 Shaft LTD 84-85
ZX1100A1/A2 GPz 83-84
