    nxsb nx60005



    If you want the same nitrous system the record holders use, this is it! More records have been broken and set with NX systems than any other. NX has the safest, most reliable nitrous system available for your power sport machine. Whether you want just a little help for your snow machine, jet ski, go-ped, go-kart, pocket bike, dirt bike, four wheeler, pit bike, Bonneville rocket, or you want to set a national record and win a drag racing world championship, NX is the system the pro's use.

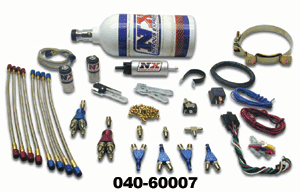

    nx60007 nxgsxr

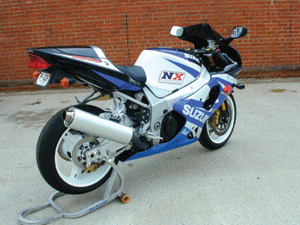

    Sportbikes
    Part NumberDescription
    040-600022 Cylinder twin "piranha" nozzles 2.5 Lb/2ft (w/fuel pump)
    040-600333 Cylinder "piranha" nozzle 2.5 Lb/2ft (w/fuel pump)
    040-600054 Cylinder street "piranha" nozzle 2.5 Lb/2ft (w/fuel pump)
    040-600064 Cylinder promod/funnybike"piranha" nozzle 2.5 Lb/2ft (w/fuel pump)
    040-60007Suzuki Hayabusa 2.5 Lb/2ft (w/fuel pump)
    040-Nx400s4 Cylinder piranha conversion w/ss braided lines and shower heads
    040-70000Piranha nozzle
    040-91017Piranha nozzle jet fitting
    040-150114 Port showerhead dist block (red) each
    040-150124 Port showerhead dist block (blue) each
    040-150133 Port showerhead dist block (red) each
    040-150143 Port showerhead dist block (blue) each
    040-150156 Port showerhead dist block (red) each
    040-150166 Port showerhead dist block (blue) each
    040-15005Motorcycle fuel pump



    nxjs

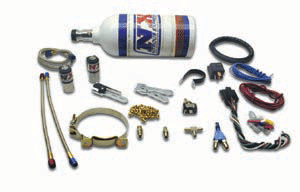

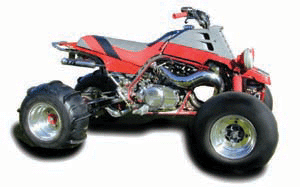

    nx60011 nxbanshee


    Jet Ski, Snowmobile, And ATV
    Part NumberDescription
    040-600011 Cylinder piranha nozzle 2.5 Lb/2ft (w/o fuel pump)
    040-600111 Cylinder piranha nozzle 2.5 Lb/2ft (w fuel pump)
    040-600022-Cylinder twin piranha nozzle 2.5 Lb/2ft (w/fuel pump)
    040-600333 Cylinder piranha nozzle 2.5 Lb/2ft (w/fuel pump)
    040-600054 Cylinder street piranha nozzle 2.5Lb/2ft (w/fuel pump)
    040-600064 Cylinder promod piranha nozzle 2.5 Lb/2 ft (w/fuel pump)



    nxhd




    nx60122 harley

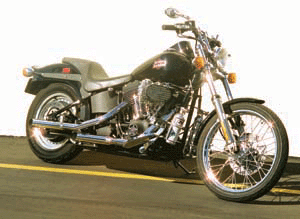

    Harley Davidson
    Part NumberDescription
    040-60022Harley Stage One Piranha nozzle 2.5Lb/2ft (w/fuel pump)

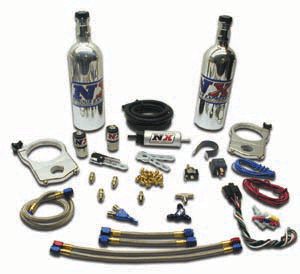

    040-60122Harley show polished dual bottles & billet brackets 2-1.4 Lb/2ft (w/fuel pump)
    040-60123Harley show polished dual bottles & billet brackets 2-10oz/2ft (w/fuel pump)



    nxacc


    NX has a full range of accessories for your play toys. Chack out the part number available,
    from additives for your fuel tank to Zoom, Zoom we've got it all. acc

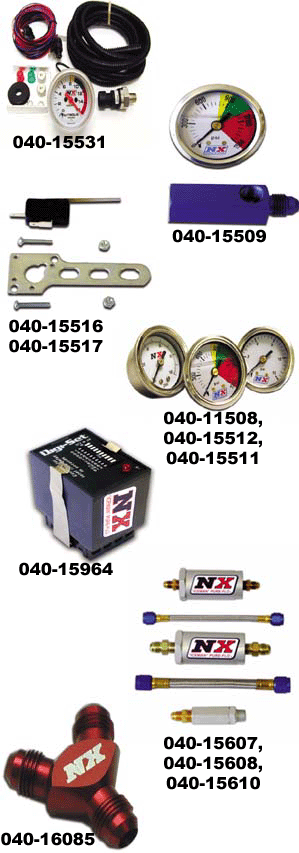

    Accessories
    Part NumberDescription
    040-15504Wide open throttle nitrous control switch w/H.D. 60 Amp rely
    040-15506Nitrous flo-thur manifold (d-4)
    040-15508Nitrous pressure gauge only (0-1500 psi)
    040-15509Nitrous flo-thur pressure gauge (d-4 w/manifold)
    040-15511Gasoline pressure gauge (0-15 psi w/adapter)
    040-15513D-4 manifold w/multiple ports for extra accessories
    040-1551560 Amp anti-flyback heavy duty relay (w/wire harness)
    040-15516Wide open throttle switch only (no relay, bracket or hardware)
    040-15517Universal wot switch bracket (only)
    040-15519Master flo-check (checks flowing fuel pressures, gauge include)
    040-15523D-6 manifold w/multiple ports for extra accessories
    040-1552660 Amp anti-flyback heavy duty relay (only)
    040-15531Remote electronic nitrous pressure gauge
    040-15600Nitrous purge valve (w/d-4 manifold, push button, and vent tube)
    040-15602Plumbing kit for dual vent purge system
    040-15603Purge valve for the ice-man solenoid (solenoid, push button, and vent tube)
    040-15607D-4 pure-flo N20 filter & 7 stainless hose (life time cleanable)
    040-15706Nitrous system activation push button
    040-15707Lighted (red) nitrous system arm switch
    040-15708Heavy duty fuel pressure safety switch (carb. Fuel pressure)
    040-15709Universal solenoid mount (include. Screws, specify solenoid)
    040-15938Fully Automatic Motorcycle Bottle Heater Complete with Transducer
    040-15963NX digital maximizer next generation variable output power controller
    040-15964NX digi-set delay timer
    040-160001996 & later OBDII Power Booster
    040-160011995 & Earlier Pre-ODBII Power Booster



    nxhd nxb


    Even with the use of a high flowing solenoid, you still have to have proper flow to the solenoid.
    So when we set out to create the highest flowing nitrous solenoid, we had to spend equal time addressing
    the nitrous bottle valve flow. Steps were taken to match the flow characteristics of the bottle valve
    with that of the solenoid. Our final results led to the highest flowing bottle valve on the market, the
    "pure-flo+" bottle valve.

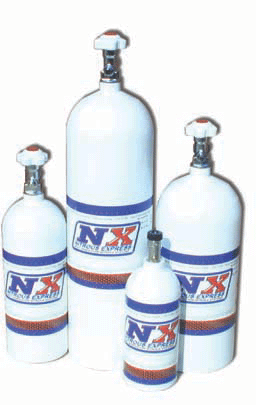

    Nitrous Bottles
    Part NumberDescription
    040-1101016oz bottle (w/motorcycle valve)
    040-1102210oz bottle (w/motorcycle valve)
    040-110231.4 Lb bottle (w/motorcycle valve)
    040-110241.4 Lb bottle (w/motorcycle valve)
    040-110252.5Lb bottle (w/motorcycle valve)
    040-110302Lb bottle (w/motorcycle valve)
    040-110555Lb bottle (w/motorcycle valve)


    nxbs nx11108

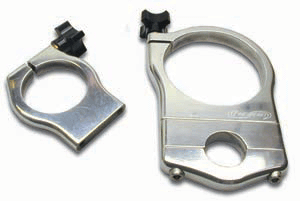

    Bottle Accessories
    Part NumberDescription
    040-111095Lb Stainless steel bottle brackets
    040-110111 & 1.25Lb motorcycle bottle bracket polished billet (each)
    040-110262.5Lb motorcycle bottle bracket
    040-110272.5Lb bottle valve O-ring

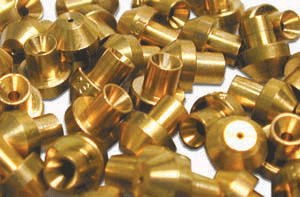

    nxjets nxjets01


    There has been a lot of bragging about who makes the best, most accurate jets. Some claim brass jets are eroded by flowing gasoline and nitrous, thus making them inaccurate. While it is true that the flow of gasoline and nitrous will eventually wear away the brass surface, that process would take about 1 million years, not a concern for most of us. The NX HP Jets are manufactured on CNC equipment, and are guaranteed to be within .0005 of specified jet size. In recent testing, using the same jet size, HP jets out flowed the competition by 35%! ThatŐs right 35% more flow through the same orifice, how you ask? The HP jet was designed to be more than just a hole in a piece of brass; its contoured inlet and multi-stepped outlet allow turbulence free flow with no restrictions. Individual jets are ordered using the prefix 040-17, just add the jet size to the end as follows: Example: A size 41 jet would be part# 040-17041 nxjetboxopen

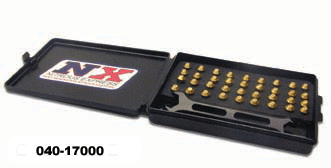

    Tired of chasing your nitrous jets around? Never can find the one you need when you need it? The NX Jet Box is a convenient, safe way to store your Nitrous Express jets. Protecting them from damage and with enough capacity to store a nozzle systems complete jet inventory, this is a must for the serious nitrous user. A custom, anodized, aluminum, billet, jet-changing wrench is included.



    nxsi nxs


    Over the years there has been an ongoing battle between nitrous companies over who can design the highest flowing nitrous solenoid. Well the truth is, bigger usually results in better. Especially in the case of the nitrous solenoid. For years racing organizations, which have allowed the use of nitrous, have put a restriction on the orifice size to keep thingsfom getting out of hand. So we started from scratch, using expert help of a fluidics engineer to design state of the art solenoids. These custom made, high flowing, long lasting, CNC machined solenoids not only have CNC ported inlets, we even went so far as to color coordinated the wires as well! For those of you that, DON'T NEED NO STINKING RULES! We have the ultimate humbler. We have the largest flowing nitrous solenoid on the market! Used today by many on our "Super Shark" 1,000 HP Twin Nozzle systems. How bigis it? How about 8.8 lb of nitrous flow in 10 seconds! And just like the rest of our solenoids, this MONSTER is backed by a lifetime warranty.

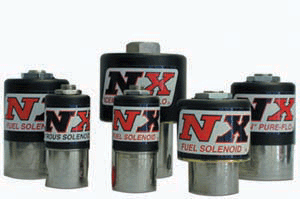

    Solenoids
    Part NumberDescription
    040-15099Nitrous Purge Solenoid
    040-15100Nitrous Solenoid, Stage One (small, .063 Orifice)
    040-15101Gasoline Solenoid, Stage One (Small, .125 Orifice)
    040-15200Nitrous Solenoid, stage Five ( large, .093 Orifice) Ice-man Pure-flo
    040-15201Gasoline Solenoid, stage Five ( large, .187 Orifice)
    040-15300Nitrous Solenoid, Pro-power (large, .125 Orifice) Ice-man Pure-flo
    040-15301Gasoline solenoid, Pro-power (large, .312 Orifice)
    040-15302Alcohol solenoid, Pro-power (large, .312 Orifice)
    040-15503Nitrous Solenoid, Super Shark (large, .157 Orifice

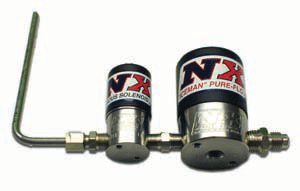

    Introducing the "Iceman Pure-Flo" nitrous solenoids.
    These solenoids have a purge port built right into
    the solenoid body. This design allows pure liquid
    nitrous to bbe drawn through the solenoid, when
    purging, to deliver liquid nitrous directly to the
    solenoid orifice for an intant "sledge hammer" hit.

    iceman
    Solenoids
    Part NumberDescription
    040-15733Solenoid maintenance wrench
    040-15738Piston only, (fuel small .125)
    040-15739Piston only, (fuel .187)
    040-15740Piston only, (fuel .312)
    040-15741Piston only, (nitrous small .063)
    040-15742Piston only, (nitrous .093 & .125 & LARGE .063)
    040-15761Piston only, (nitrous Super shark .157)
    040-15743Electro-magnet only (nitrous .093 & .125 & large .063)
    040-15746Electro-magnet only (nitrous small .063)
    040-15747Electro-magnet only (nitrous super shark .157)
    040-15748Electro-magnet only (fuel .125) small fuel
    040-15749Electro-magnet only (fuel .187)
    040-15750Electro-magnet only (fuel .312)
    040-15744Tower only, (nitrous .093 & .125 & large .063)
    040-15751Solenoid tower only, (nitrous small .063)
    040-15752Tower only, (nitrous Super shark .157)
    040-15753Tower only, (fuel small .125)
    040-15754Tower only, (fuel .187)
    040-15755Tower only, (fuel .312)
    040-15745Tower gasket (nitrous .093 & .125 & large .063)
    040-15756Tower gasket (nitrous small .063)
    040-15757Tower gasket (nitrous Super shark .157)
    040-15758Tower gasket (fuel small .125)
    040-15759Tower gasket (fuel .187)
    040-15760Tower gasket (fuel .312)

    nxf

    nxfs

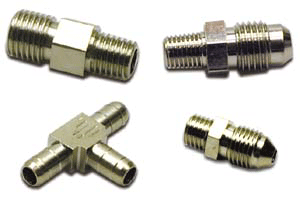

    Fittings
    Part NumberDescription
    040-16121-4x-4 male union
    040-161231/8 npt x 1/8 npt male union connector
    040-161241/4 npt x 1/4 npt male union connector
    040-161253/8 npt x 1/4 npt male union connector
    040-161261/4 npt x 1/8 npt male union connector
    040-161273/8 npt x 1/8 npt male union connector
    040-161281/8 npt x 1/8 npt 90' male union connector
    040-161291/4 npt x 1/8 npt 90' male union connector
    040-161301/4 npt x 1/4 npt 90' male union connector
    040-16131-3 male x 1/8 npt straight "t"
    040-16132-3 male x 1/8 npt run "t"
    040-16133-3 Tee
    040-16134-4 male x 1/8 npt straight "t"
    040-16135- 4 male 3 way "t"
    040-161381/8 npt male x 3/8 compression straight
    040-161391/4 npt male x 3/8 compression straight
    040-161401/16 npt plug
    040-161411/8 npt plug
    040-161421/4 npt plug
    040-161433/8 npt plug
    040-16144-4 cap
    040-161461/4 male npt x 1/8 female npt reducer
    040-161473/8 male npt x 1/8 female npt reducer
    040-161483/8 male npt x 1/4 female npt reducer
    040-16150-3 x 5/16 nozzle systems rail fitting
    040-16150-3 x 5/16 nozzle systems rail fitting
    040-16089-4 plug
    040-16090-3 cap
    040-16091-4 male x 1/8 npt straight
    040-16092-4 male x 1/4 npt straight
    040-160941/4 npt female x 1/8 npt female union
    040-16095-4 male x -6 male union reducer
    040-16097-3 male x -4 male union reducer
    040-16098-3 male plug
    040-16099-3 x -3 male union
    040-161031/8 npt x 1/4 straight hose barb
    040-161071/4 hose barb "t"
    040-16108-3 x 1/8 npt straight
    040-16109-4 x 1/8 npt straight
    040-16110-3 x 1/4 npt straight
    040-16111-4 x 1/4 npt straight
    040-16115-3 x 1/8 npt 90'
    040-16116-4 x 1/8 npt 90'
    040-16117-4 x 1/4 npt 90'
    040-91017Vortech/ Shark/Piranha/SX2 nozzle fitting




    nxfls


    nxfl
    Fuel Lines
    Part NumberDescription
    040-10008D-3 (8in) stainless steel braided hose (blue)
    040-10009D-3 (8in) stainless steel braided hose (red)
    040-10012D-3 (12in) stainless steel braided hose (blue)
    040-10013D-3 (12in) stainless steel braided hose (red)
    040-10018D-3 (18in) stainless steel braided hose (blue)
    040-10019D-3 (18in) stainless steel braided hose (red)
    040-10024D-3 (2ft) stainless steel braided hose (blue)
    040-10025D-3 (2ft) stainless steel braided hose (red)
    040-10030D-3 (30in) stainless steel braided hose (blue)
    040-10031D-3 (30in) stainless steel braided hose (red)
    040-10036D-3 (3ft) stainless steel braided hose (blue)
    040-10037D-3 (3ft) stainless steel braided hose (red)
    040-10040D-3 (42in) stainless steel braided hose (blue)
    040-10041D-3 (42in) stainless steel braided hose (red)
    040-10038custom D-3 stainless steel braided hose
    040-11112D-4 (12in) stainless steel braided hose (blue)
    040-11113D-4 (12in) stainless steel braided hose (red)
    040-11118D-4 (18in) stainless steel braided hose (blue)
    040-11119D-4 (18in) stainless steel braided hose (red)
    040-11124D-4 (2ft) stainless steel braided hose (blue)
    040-11125D-4 (2ft) stainless steel braided hose (red)
    040-11136D-4 (3ft) stainless steel braided hose (blue)
    040-11137D-4 (3ft) stainless steel braided hose (red)
    040-11148D-4 (4ft) stainless steel braided hose (blue)
    040-11172D-4 (6ft) stainless steel braided hose (blue)
    040-11196D-4 (8ft) stainless steel braided hose (blue)
    040-11120D-4 (10ft) stainless steel braided hose (blue)
    040-11144D-4 (12ft) stainless steel braided hose (blue)
    040-11168D-4 (14ft) stainless steel braided hose (blue)
    040-11192D-4 (16ft) stainless steel braided hose (blue)
    040-11240D-4 (20ft) stainless steel braided hose (blue)
    040-11248Custom D-4 stainless steel braided hose
