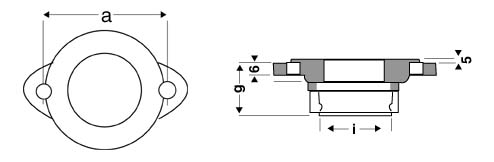

Diagram and Dimensions (mm)

Order No. Mikuni No. 8.5mm Bolt Hole Center (a) Carb Bore Size Carb Spigot Diameter (i) Flange Throat Depth (g) Typical Carb Size 002-050 I-VM28-200-1 60 30 35 28 26-28 002-051 VM30-288-1 57.2 30 37 23 26-28 002-052 VM32/205 75 34 40 32 30-34 002-053 VM34/200-1 60 34 40 25 30-34 002-054 I-VM36-200-1 70 40 43 25 36-40 002-055 I-VM38/200-1 74.6 38 43 28 36-38 002-056 I-VM40-200-1 75 46 52 32 40-44 002-057 I-VM44-200-1 84 46 52 25.5 40-44 002-986 KHS-004 70-75 40 43 28 36-40 007-460 HS42/018-42 83 42 43 35 42 007-461 HS42/018-45 83 45 48 35 45 007-467 HS42/062-48 85 48 52 35 48
