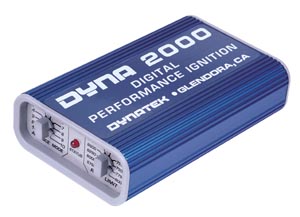

Dyna 2000 Sport Bike Ignition Systems

Dyna2000 DYNA 2000 Digital Performance Ignition for Sportbikes. The Dyna 2000 Digital Performance Ignition for four cylinder engines represents a breakthrough in motor-cycle ignition flexibility. The Dyna 2000 system consists of a state-of-the-art microprocessor controlled ignition module along with an adjustable Dyna dual sensor crank trigger. For the first time you can actually set the ignition timing to what you want to maximize engine performance. A number of different advance curve modes and a broad range rev limiter let us tailor the ignition to your needs.

The Dyna 2000 also has fhe following built-in features: Fully Static Timeable - Independent 1/3, 2/3 Cylinder Timing - Static Timing Light - Five DifferentAdvance Curves - Test Mode - Four Different Retard Modes - Safety Interlock Input - Broad Range Rev Limiter Digital Tach Output - High Energy - Easy Illlounting - Complete Wiring Harness - Low Cost

ApplicationYearDyna # Sudco Part #
HONDA
CBR60087-90DDK1-6618-830
CBR600F291-94DDK1-7618-831
CBR600F395-97DDK1-8618-832
CB75079-83DDK1-5618-860
DDK1-5C618-861*
CB90079-83DDK1-5618-860
DDK1-5C618-861*
CBR900RR93-97DDK1-9618-833
CB110079-83DDK1-5618-860
DDK1-5C618-861*
CBR1100XX97DDK1-10618-857
KAWASAKI
GPZ55081DDK2-3618-868
DDK2-3C618-869*
ZX6R98-99DDK2-11618-875
KZ65077-80DDK2-2618-867
DDK2-2C618-856*
ZX7/7R/7RR91-97DDK2-7618-837
H2 750 Triple72-75DDK2-17C618-879
KZ750
(Includes: GPZ & Turbo)		80-84 DDK2-2618-867
ZX9R93-97DDK2-7618-837
Ninja 900R 84-85DDK2-4618-834
Ninja 1000R86-87DDK2-4618-834
GPZ w/modifications81-91 DDK2-1618-865
DDK2-1C618-866*
KZ 900/1000/1100 73-85 DDK2-1618-865
DDK2-1C618-866*
ZX1088-89DDK2-4618-834
ZX1190-97DDK2-4618-834
SUZUKI
GS550/750/85077-81DDK3-2618-870
RF600/90094-97DDK3-4618-841
Katana 600/750/110088-95DDK3-3 618-840
GSXR750/110086-92DDK3-3618-840
GSXR750W93-95DDK3-4618-841
GS1000/1100/115077-85DDK3-2618-870
DDK3-2C618-871*
GSXR1100W93-97 DDK3-4618-841
Bandit 1200S96-97DDK3-3618-840
YAMAHA
FJ1100/1200ALLDDK7-1618-845
NOTE: * = Includes a pair of DC4-1 Coils (2.2 ohm dual output)




Dyna 2000 Off-Road FS Ignition Systems

618-936P Warrior

The new DYNA FS is a True Performance Ignition System for Dirt Bikes. After over a year of development with technical assistance and track testing from Factory Race Teams and their riders, the DYNA FS is now available to those who have a need for the performance edge. The DYNA FS ignition has been adopted as the Performance Ignition of choice by Suzuki, Honda, and Kawasaki Factory Sponsored Race Teams and Privateer Racers worldwide.

The DYNA FS Programmable Ignition is the ultimate dirtbike ignition. Combining the unequalled spark energy of our standard ignition with a level of programmability that surpasses the factory "works" programmable igntion, it's no wonder factory teams are switching to DYNA FS! Get the most out of your modifications by tuning the ignition to exactly what your bike needs. Adjust the power delivery to fit your riding style. Programming kit sold separately.


ApplicationYearDyna No. Order No.
HONDA
XR50/XR80AllDFS1-12618-969
TRX250R86-89 DFS1-11P618-968P*
TRX400EX99-02DFS1-10P618-967P*
XR40097-01 DFS1-10P618-962
TRX450R04 DFS1-13P618-970P*
KAWASAKI
KFX40003-04DFS3-9P618-928P*
KFX700/V-Force03-04DFS2-14618-950
POLARIS
Predator03-04DFS9-1P618-943P*
SUZUKI
LTZ40003-04DFS3-9P618-928P*
YAMAHA
YZF350 (Banshee)87-94DFS7-8P618-939P*
97-03DFS7-6P618-935P*
YFM350X (Warrior)97-01DFS7-9P618-936P*
YFZ450-DFS7-12P618-492P*
Raptor 66001DFS7-10P618-937P*
02-03DFS7-11P618-938P*
*programmable ignition


Dyna FS Programming Kit

Dyna FS Programming Kit


The Dyna FS Programming Kit includes everything you need to reprogram the Dyna FS programmable ignition. Easy to understand interface, simple saving, recalling and printing of curves, and quick reprogramming of the ignition make this the most user friendly programming ignition software available. The kit includes the software to reprogram all available Dyna FS programmable ignition models and the programming cable. Not recommended for inexperienced tuners.


Dyna No.Order No.
DFSPK-1618-990

Back to Off-Road Page




Dyna 2000 for Kawasaki Early Model Cruisers

Dyna3000


FEATURES INCLUDE:
  • Increased Mid Range Power and Torque
  • Broad Range Adjustable Rev.Limiter
  • Side Stand Safety Interlock Input
  • Diagnostic LED Indicator Light
  • Throttle Position Sensor Input
  • Ten Different Advance Curves
  • Increased Peak Horsepower
  • Increased Fuel Economy
  • Digital Tach Output
  • Improved Starting
  • Easy Mounting
  • 1 Year Warranty


    • ApplicationyearDyna No. Order No.
    "A" Models94-99DDK2-10618-874
    Vulcan D1, D2, E1 Classic96-99DDK2-13618-876

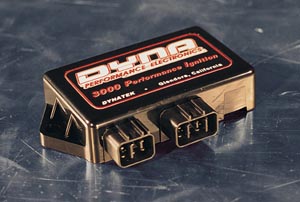

    Dyna 3000 for Late Model Cruisers

    Dyna3000

    FEATURES INCLUDE:
  • 8 Selectable Advance Curves
  • 8 Selectable Rev limits (increased rev limits over stock)
  • Status LED:
             A) Indicates power-up
             B) Indicates pickups
             C) Indicates TPS (throttle position sensor) operation
             D) Indicates MAP sensor operation (applicable models only)
  • Easier Starting
  • Plug and Ride, 5 Minute Installation (on most models)
  • Uses all Factory Sensors
  • Mounts Directly to Factory Location
  • Uses Factory Coils, or Dyna Coils
  • Reverse Battery Protection
  • Retard Mode for Nitrous or Blower Applications

    • ApplicationyearDyna No. Order No.
    HONDA
    GL1500C, CT Valkyrie97-01D3K1-1 618-675
    VT1100C2 Shadow97-00 D3K1-2618-676
    C2 Shadow Ace97-00D3K1-2618-676
    C2 Shadow America97-00D3K1-2618-676
    C2 Shadow Aero97-00D3K1-2618-676
    D2 Shadow Ace99D3K1-2618-676
    T Shadow Tourer98-00D3K1-4618-678
    VT750C/CD/CD2Shadow Ace98-01D3K1-3 618-677
    KAWASAKI
    VN800Vulcan Drifter00D3K2-1 618-681
    VN1500
    (Classic & Normad Carb Models)    		G Vulcan99-02D3K2-2 618-682
    SUZUKI
    VS1400Intruder90-95D3K3-1 618-685
    Intruder96-01D3K3-2618-686
    VL1500Intruder98D3K3-3 618-687
    Intruder99-04D3K3-4618-688
    YAMAHA
    XVS650V-Star98-01 D3K7-1618-691
    XVS1100V-Star99-01D3K7-2 618-692
    XV1600Road Star99-02D3K7-3 618-693
    XVZ13Royal Star96-01D3K7-4 618-694
    Venture99-01D3K7-5 618-695
    VMX12V-Max90-01D3K7-6 618-696




    Dyna DRL-300

    618-794
    Part Number:618-794
    The DRL300 has an improved clamping capability, and more outputs than the DRL200. The DRL200 could clamp only 2 of our green (higher impedance) coils. The DRL300 can clamp up to 4 of our blue (low impedance) coils. This means it can be used on drag bikes, and many other applications it could not manage before (automotive HEI ignitions). In addition, the output stage has also added a separate kill input. This input works separate of the rev limiter and can function even when the rev limiter has no power. This will kill the spark whenever a 12V signal is applied to the input.

    Potential uses include shift kill to kill ignitions during upshift, allowing for clutchless shifts. Instead of having to cut jumper wires to get the box to work with a particular application, and having only two choices, there are now 3 dip switches. These dip switches allow not only for a very wide range of applications (single fire thumpers to Harleys to inline 4s to 8 cylinders), but they also allow for the rev range to be adjusted from the standard 6000-12000. This means that new motorcycles with 12000+ rpm redlines can now be handled, as can applications where the limit needs to be set below 6000.

    DRL-300 Features:
  • Continuously adjustable from 6,000 to 12,000 rpm
  • Helps prevent engine failure
  • Prewired and easy to install





    618-993
    (F.I.) Fuel Injection Controller The Dyna Fuel Injection controller is a plug-in module that offers 3 user selectable base fuel curves. Designed to improve engine operation and can be modified to suit a wide variety of modifications. These adjustments are made via 3 potentiometers that adjust the fuel curve in the proper ranges for the application. Fuel mixture can be enriched or leaned as required. The Dyna F.I. Controller use the factory connectors for easy installation and there is no PC required for tuning or adjusting the fuel curves. There are no modifications to the stock ECU and removing the Dyna F.I. Controller returns the vehicle to the factory settings. Available for the following “Metric CRUISER” models: Metric Cruiser Model Dyna F.I. Fuel Controler


    • Metric Cruiser
    Honda
    ApplicationYearDyna No. Order No.
    VTX1800 (all C, N & Retro models)02-05DFCM-1618-991
    Kawasaki
    VN1500 Vulcan Classic, Vulcan Drifter99-05DFCM-2618-992
    VN1500 Vulcan Mean Streak & Nomad99-05 DFCM-2618-992
    VN1500 Vulcan Classic & Mean Strake03-05DFCM-3618-993
    VN2000 Vulcan 04-05 DFCM-4618-994
    Suzuki
    VL800 Boulverad C502005DFCM-5618-995
    VZ800 Boulevard M502005 DFCM-5618-995
    VL1500 Boulevard C902005 DFCM-6618-996
    VZ1600K4 Marauder2004 DFCM-3618-993
    VZ1600 Boulevard M952005 DFCM-3618-993
    Yamaha
    XV1700 Road Star Warriorr02-05DFCM-7618-997
    		ATV
    Bombardier
    ApplicationYearDyna No.Order No.
    Outlander 8002006DFCA-5618-895
    Honda
    TRX680 Rincon2006DFCA-1618-891
    Polaris
    500EFI2006DFCA-6618-896
    700Twin EFI2004DFCA-7618-897
    700Twin EFI05-06DFCA-8618-898
    800 Twin EFI05-06DFCA-9618-899
    Suzuki
    LT-R4502006DFCA-2618-892
    LT700 King Quad2006DFCA-3618-893
    Yamaha
    YFM700 Raptor2006DFCA-4618-894
