Carburetor Hardware & O-Rings

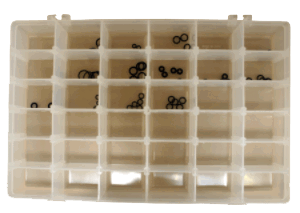

007-945
SUDCO Mikuni Carburetor O-Rings
Genuine OEM MIKUNI carburetor o-rings. Made in Japan.
Order No. Description
007-945 SUDCO Mikuni Carburetor Dealer O-Ring Kit
includes qt5 each part number listed below.
(total qt 75 o-rings and plastic storage box)

Order No. Mikuni Reference O-Ring Description Size Inside x Thickness
002-212 BV32/04 - 3.55 I.D. x 1.78mm
002-531 VM28/254 Drain Plug 19.50 I.D. x 1.52mm
002-602 BNO42/64 - 17.50 I.D. x 1.52mm
002-617 BV30/40 - 8.70 I.D. x 1.95mm
002-672 VM18/249 Starter Plunger 8.50 I.D. x 1.55mm
002-676 VM14/75 Pilot Air Screw 2.50 I.D. x 1.55mm
002-709 KV/10 Fuel Joint &
Needle Valve 		7.75 I.D. x 1.53mm
002-825 VM26/227 - 19.60 I.D. x 2.43mm
002-838 VM24/559 Needle Valve 6.70 I.D. x 1.35mm
002-858 N133.037 Pilot Air Screw 2.70 I.D. x 1.13mm
007-160 N138.198 Starter/Choke 10.25 I.D. x 1.35mm
007-163 N124.063 - 1.80 I.D. x 1.15mm
007-182 616-23002 Fuel Joint 6.25 I.D. x 1.83mm
007-188 B30/205 - 3.05 I.D. x 1.35mm
007-470 616-33003 Needle Valve 8.47 I.D. x 1.53mm

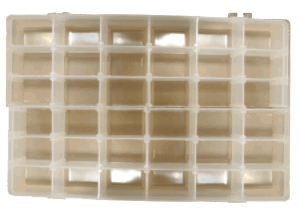

008-001
SUDCO Plastic Jet Boxes (Storage Boxes)
Two boxes available, 36 compartment and 16 compartment.
Use for valve shim storage, small parts, electrical connectors and
carburetor jets. Sold each.
Order No. Description Size
008-001 Jet Box with 36 Compartments 7-1/2” L x 10-1/2” L x 1-1/4” H
008-002 Jet Box with 16 Compartments 3-1/4” L x 6-3/4” L x 1-1/2” H
007-945
SUDCO Keihin Carburetor O-Rings
Genuine OEM KEIHIN carburetor o-rings. Made in Japan.
Order No. Description
018-905 SUDCO Keihin Carburetor Dealer O-Ring Kit includes qt5 of each part number listed below.
(total qt 65 o-rings and plastic storage box)

Order No. Keihin Reference O-Ring Description Size Inside x Thickness
018-664 16173-001-0040 - 18.50 I.D. x 2.85mm
018-694 16075-MB0-0030 - 7.90 I.D. x 1.40mm
018-722 0901-006-6000 - 2.65 I.D. x 1.90mm
018-755 W9351-13057 Fuel T-Joint 5.65 I.D. x 1.33mm
021-043 16075-KG8-9010 Pilot Screw 2.70 I.D. x 1.20mm
021-047 16958-397-7710-M1 Needle Seat 9.10 I.D. x 1.30mm
021-067 W9353-36000 U-Ring 3.55 I.D. x 1.95mm
021-070 W9353-11042 Accelerator Pump 4.0 I.D. x 1.05mm
021-071 16178-548-0040 - 5.80 I.D. x 1.9mm
021-097 W9353-6500 U-Ring 6.35 I.D. x 2.95mm
021-109 16075-935-0060 Drain Bolt 15.15 I.D. x 1.95mm
021-527 0901-069-6000 Choke O-Ring 8.95 I.D. x 1.35mm
021-732 16978-ZB9-0050 - 11.75 I.D. x 1.94mm



007-201
SUDCO Carburetor Screws
Genuine carburetor screws in different sizes.
Use for float bowl, top cover. Sold each.
Made in Japan.
CW2 = with lock washer C2 = screw only
Order No. Mfg.# Size Application
007-265 CW2=2608 2.6 x 8mm Cable Holder Screw
007-174 VM13/216 3 x 6.5mm Needle Valve Holder Screw
002-479 CW2=0308 3 x 8mm -
002-752 CW2=0310 3 x 10mm Throttle Valve Screw
007-175 CW2=0408 4 x 8mm Top Cover Screw
007-626 CW2=410 4 x 10mm Top Cover Screw TM33
007-624 C5-0410B 4 x 10mm Top Cover Screw HSR42/45
002-749 VM38/133 4 x 12mm Torx Screw
002-748 CW2=0412 4 x 12mm Float Bowl Screw
007-201 C2=0412-B 4 x 12mm Float Bowl Screw
002-522 CW2=0414 4 x 14mm Float Bowl Screw
007-621 C2=0414 4 x 14mm Float Bowl Screw short TM33
007-622 C2=0416 4 x 16mm Float Bowl Screw long TM33
002-823 CW2=0416 4 x 16mm Float Bowl Screw
002-615 CW2=0416-B 4 x 16mm Float Bowl Screw
007-698 C2=0514-B 5 x 14mm Float Bowl Screw
002-516 CW2=0514 5 x 14mm Float Bowl Screw
002-373 CW2=0516 5 x 16mm Float Bowl Screw
002-719 CW2=0518 5 x 18mm Float Bowl Screw
