Call your Sudco Rep. for Close Out pricing.

• PRO-CYCLE Tachometers
• Carbon Fiber Tachometer
• Electronic Tachometers
• PRO-CYCLE Electronic Speedometers
• PRO-CYCLE Shift Lites
• PRO-CYCLE Brackets

Electronic Tachometers

Auto Meter now offers 2 5/8" and 3 3/8" brilliant chrome tachometers for custom street and show motorcycles. These water resistant tachs are built with the same technology as our racing products. They are designed to fit mounting brackets similar to those offered by Cycle Performance products, and work with all stock and popular aftermarket 1 and 2 pulse ignitions.

Order No.	Auto Meter No.	Description

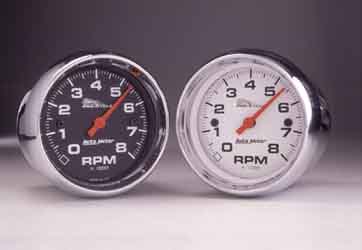

2 5/8" PRO-CYCLE Street Tachometers
030-079	19304	8,000 RPM Black Dial Chrome Bezel and Cup
3 3/8" PRO-CYCLE Street Tachometers
030-076	19301	8,000 RPM White Dial Chrome Bezel and Cup

PRO CYCLE Electronic Speedometers

Finally, a programmable speedometer built tough enough to bear the PRO-CYCLE name. The unmatched Auto Meter style along with the benefits from the years of Auto Meter's racing experience puts this speedometer ahead of the rest. These speedometers will work with most speed sensors, including Harley-Davidson transmissions with electronic speed sensors. The bezel and case have a brilliant chrome finish with a choice of black, white, or silver dial faces. A fluorescent red pointer rounds out the trademark Auto Meter style. Look for these features and more from the PRO-CYCLE Electronic Speedometer.

• Easy push button recalibration while driving
• Million mile LCD odometer with resettable trip odometer
• Easy installation with only three wires
• Available in 120 MPH or 160 MPH
• Quality chrome finish on bezel and 3 3/8" case
• 5" models fit into 4 5/8" opening, 3 3/8" models fit into standard billet instrument mounts

5" Speedometers Order No. Auto Meter No. Description 160 MPH Electronic Speedometer 030-114 19364 Black Dial 030-115 19365 White Dial NOTE: Custom dash applications only. Requires 4.625" mounting hole.

PRO-CYCLE Shift-Lites

• Mini Shift-Lite and RPM Activated Module



The Mini Shift-Lite is a small and compact unit to allow for easy mounting even in hard to fit areas. It uses a quick acting LED to give precise shift points. Works with all stock and popular aftermarket 1 and 2 pulse ignitions.

Order No. Auto Meter No. Description 030-150 5330 Quick-Lite (black) -use w/19216 RPM Activated Module (N/A from Sudco)

• Pro-Shift Lite and "Pill" Kits

  The shift-point is selected by sliding precisely calibrated RPM module "Pills" into the unit. Accuracy is achieved through a quick acting LED. Each kit includes 5 calibrated "Pills" in 200 RPM increments beginning with the first number listed. Works with all stock and popular aftermarket 1 and 2 pulse ignitions.

         Pro-Shift Lite    Order No. 030-250 (AM No. 19206)
         Requires module set listed below

RPM Module
Order No.	Auto Meter No.	Description
030-214	5367	6,600 - 7,600

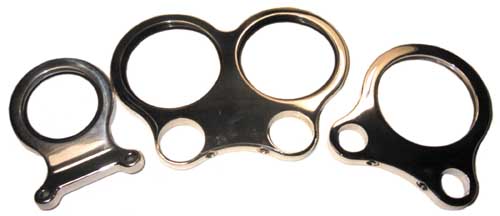

PRO-CYCLE Brackets

031-100 Tachometer Bracket, Angled (CPP/9080) This polished aluminum bracket is designed to house the popular 3 3/4" & 5" Pro-Cycle instruments and bolt onto the H-D style straight risers. If you wish to install this unit behind most windshields, simply turn your risers around. 031-110 Mini Tachometer Bracket, Springer (CPP/9082) This polished aluminum bracket is designed to house the popular 3 3/4" & 5" Pro-Cycle instruments and bolt onto the H-D style springer risers. If you wish to install this unit behind most windshields, simply mount off the rear holes of the risers. 031-111 Mini Tachometer Bracket Springer (CPP/9082M) Same as above, except for the new 2 5/8" Pro-Cycle instruments.

031-101 Mini Tach Bracket, Angled (CPP/9080M) Same as CPP/9080, except for the new 2 5/8" Pro-Cycle instruments. This combination will install behind most windshields. 031-106 Mini Tach Bracket, Straight (CPP/9081M) Same as CPP/9081, except for the new 2 5/8" Pro-Cycle instruments.

Description	Single		Dual
	3 3/8"	2 5/8"	3 3/8"	2 5/8"
Straight Risers, H-D	031-100	031-101	-	N/A
Pull-Back, H-D	-	031-106	-	N/A
Springer Risers, H-D	031-110	031-111	-	N/A
1" T-Bass	-	-	031-117	031-118
1 1/2" Beefy Bars	-	-	-	031-138
