APE Cam Chain Products




  • Manual Cam Chain Tensioners
  • Kawasaki GPZ Cam Chain Adapter


    • Manual Cam Chain TensionerManual Cam Chain Tensioners

    APE manual cam chain tensioners are designed to replace the automatic and hydraulic tensioners on high performance engines. The automatic adjusters can back out when the throttle is closed suddenly at high rpm. This allows the cams to go momentarily out of time, and can result in bent valves and/or serious engine damage. Hydraulic tensioners have a tendency to put too much tension on the chain guide under high rpm/high oil pressure conditions, resulting in premature wear.

    Both problems can be eliminated with the installation of the APE manual tensioner. No matter what the engine does, the cam chain tension will remain constant. An APE manual cam chain tensioner is a must for any kind of performance riding. (Part No. shown at right)

    Honda
    ApplicationYearTensionerOrder No.GasketOrder No.
    CRF450F-ST1300GX875-405 EC377875-783
    CBR600F2-HT600875-425 OEM Honda-
    Hurricane-HT600875-425 OEM Honda-
    F3/F4/F4i-HT900875-426 EC388875-784
    RR03HT600RR875-430 EC814875-788
    CBR900RR-HT900875-426 EC388875-784
    CBR919RR-HT900875-426 EC388875-784
    CBR929--HT929875-427 EC631875-756
    CBR954--HT929875-427 EC631875-756
    VTR1000/Superhawk(2req)-HT1000VTR875-429EC388875-784
    CBR1000RR-HT600RR875-430 EC814875-788
    CBR1100XXBlackbird-HT900875-426 EC388875-784


    Kawasaki
    ApplicationYearTensionerOrder No.GasketOrder No.
    KFX400--ST1300GX875-405 EC377875-783
    KLX400--ST1300GX875-405 EC377875-783
    EX500-AllKT1050875-415- -
    Ninja 600--KT1100875-416- -
    ZX-6R-96-02KT750875-417- -
    ZX-6RR636cc02-04KT750875-417- -
    VN750Vulcan85-03KT1100875-416- -
    ZX-7all center cam chainup to 90KT1100875-416- -
    -91-02KT750875-417- -
    ZX-9-94-97KT750875-417- -
    -98-04KT900875-419- -
    KZ900/KZ1000/Z1-thru 80KT1000875-418EC067875-782
    ZX-10-thru 03KT1050875-415--
    -04-05KTZX10875-420--
    ZX-11-AllKT1050875-415--
    ZRX-11/ZRX1200-AllKT1050875-415--
    Ninja900/1000-AllKT1050875-415--
    KZ1000J/GPz1100 Police--KT1100875-416--
    ZX-12R-AllKT750875-417--


    Suzuki
    ApplicationYearTensionerOrder No.GasketOrder No.
    DRZ400/LTZ400-00-04ST1300GX875-405 EC377875-783
    GS500--ST650SV875-408 EC377875-783
    GSX-R 600-93-96ST1100GX875-403 EC065875-781
    -97-00ST750GX875-401 EC377875-783
    -01-03ST750Y2K875-406 EC523875-785
    -04ST1000-3875-407 EC745875-787
    SV650(req. 2)AllST650SV875-408 EC377875-783
    GSX-R 750oil cooled86-92ST750875-402 EC065875-781
    water cooled93-95ST1100GX875-403EC065875-781
    SRAD motors96-99ST750GX875-401EC377875-783
    -00-03ST750Y2K875-406 EC523875-785
    -04ST1000-3875-407 EC745875-787
    GSX-R1000-01-02ST750Y2K875-406 EC523875-785
    -04ST1000-3875-407 EC745875-787
    GSX-R1100oil cooled87-92ST750875-402 EC065875-781
    water cooled93-98ST1100GX875-403 EC065875-781
    GS1100/1150-AllST1100875-404EC062875-789
    GSF1200BanditAllST750875-402EC065875-781
    GSX1300HayabusaAllST1300GX875-405EC377875-783


    Yamaha
    ApplicationYearTensionerOrder No.GasketOrder No.
    TTR125-00-05YT1000875-435 EC019875-780
    TTR250-99-05YT1000875-435 EC019875-780
    WR250F01-05YT1000875-435 EC019875-780
    YFM250Timberwolf92-01YT1000875-435 EC019875-780
    YFB250Bear Tracker99-02YT1000875-435 EC019875-780
    YZ250F01-05YT1000875-435 EC019875-780
    WR400F98-00YT1000875-435 EC019875-780
    YZ400F98-99YT1000875-435 EC019875-780
    WR426-01-02YT1000875-435 EC019875-780
    YZ426-00-02YT1000875-435 EC019875-780
    YFZ450-04-05YT1000875-435 EC019875-780
    YZ450F03-05YT1000875-435 EC019875-780
    R6/FZR600-AllYT1000875-435 EC019875-780
    YZF/FZR750-AllYT1000875-435 EC019875-780
    YZF/FZR1000-AllYT1000875-435 EC019875-780
    FZ-1-AllYT1000875-435 EC019875-780
    R1-thru 03YT1000875-435 EC019875-780
    -04-05YTR1875-436 --
    FJ1100/1200/1300-AllYT1000875-435 EC019875-780

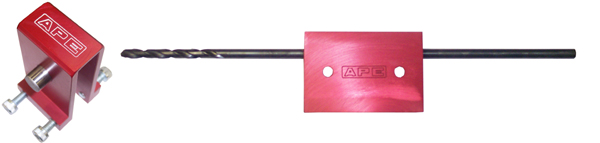

    Kawasaki GPZ Cam Chain Adapter


    This adapter allows the use of a GPZ1100 or 1000J model cylinder head on the ealier KZ900/1000 lower end. It maintains the roller style cam chain. This is the only modification nercessary to install
    the late big valve head on the early
    motor. Use with OEM KZ sprocket
    or the high performrance version above.

    Order No.APE No.Description
    875-450CCIAAdapter with pin
    875-451CCIA-JJDrill jig with drill


    Tsubaki Heavy Duty Cam Chain
